The Ultimate Guide to ONU Function and Configuration for FTTH Deployments

If you’re planning an FTTH deployment — whether you’re an ISP launching a new service, a system integrator designing a network, or an enterprise buyer evaluating equipment — you already know that the ONU (Optical Network Unit) is the device your subscribers will actually see and touch.

It’s also the device that will make or break their experience.

Choose an ONU with too few features, and you’ll face truck rolls for missing capabilities. Choose one with too many, and you’re wasting budget on features your subscribers will never use. The key is understanding which features matter for which scenario — and how they interact.

This guide walks you through every major FTTH ONU configuration option, but unlike a typical spec sheet, we’ll organize them by deployment context. You’ll see not just what each feature does, but when and why you’d choose it.

• Part 1: The Foundation — What Every ONU Must Get Right
• Part 2: The Wireless Experience — Wi-Fi as a Competitive Advantage
• Part 3: Adding Services — Voice, Video, and Storage
• Part 4: Power and Management — The Operator’s Perspective
• Part 5: Putting It All Together — Matching ONUs to Deployments
• Frequently Asked Questions
• Conclusion

Part 1: The Foundation — What Every ONU Must Get Right

Before we dive into optional ONU Function, let’s establish the non-negotiable basics.

1.1 PON Compatibility: The One Thing You Cannot Compromise

Your ONU must speak the same language as your OLT. This is the single most important compatibility requirement, and it’s not negotiable.

Critical note: While standards-based interoperability exists, full OMCI management and advanced features are often best guaranteed when ONUs and OLTs come from compatible vendors. Always verify this before purchasing.

1.2 Ethernet Ports: The Wired Backbone

Every ONU needs at least one Ethernet port. The question is how many and how fast.

The speed decision is straightforward:

• 1 GE: Sufficient for basic broadband plans up to 500 Mbps.
• 4 GE: The current sweet spot for most households with multiple wired devices.
• 5 GE or 10 GE: Essential if you’re offering multi-gigabit plans. Without these, your subscribers’ Wi-Fi 7 routers will be bottlenecked by the wired connection.

The port count decision depends on subscriber density:

A single-family home typically needs 4 ports (for a PC, TV, gaming console, and one spare).

An MDU (Multi-Dwelling Unit) or small office may need 8 ports to serve multiple tenants or workstations.

With the wired foundation in place, the next question is: what about wireless?

Part 2: The Wireless Experience — Wi-Fi as a Competitive Advantage

For most residential subscribers, the ONU’s Wi-Fi performance is the feature they’ll notice daily. It’s also where many ISPs differentiate themselves.

2.1 Single-Band vs. Dual-Band vs. Tri-Band

Single-band (2.4 GHz only): Offers superior wall penetration and broader coverage, but operates at lower speeds and faces heavy interference from household devices (microwaves, Bluetooth, cordless phones). Best suited for basic browsing and IoT sensor networks.

Dual-band (2.4 GHz + 5 GHz): The minimum acceptable standard today. Delivers the best balance. The 2.4 GHz band ensures long-range connectivity, while the 5 GHz band provides high-speed, low-latency performance for 4K streaming and online gaming.

Tri-band (adds 6 GHz): Found in Wi-Fi 6E and Wi-Fi 7 models. The 6 GHz band offers wide, uncongested channels — ideal for AR/VR, 8K streaming, and real-time applications.

2.2 Which Wi-Fi Standard Should You Choose?

Part 3: Adding ONU Function Services — Voice, Video, and Storage

Once the core data and Wi-Fi are covered, you can layer on additional services. These are optional — but for many subscribers, they’re essential.

3.1 POTS / FXS: Voice over Fiber

If your customers still use traditional landline phones, a POTS/FXS port on the ONU allows them to connect a regular telephone and make calls through the fiber network. This is still useful for many businesses and some residential users.

When can you skip POTS?

If your customers no longer use traditional phones and rely entirely on mobile phones or apps such as internet calling, you can choose an ONU without a POTS/FXS port. This can help reduce equipment cost and keep the setup simpler.

3.2 CATV RF Output: Traditional TV Over Fiber

Some fiber networks still deliver traditional cable TV signals through the same fiber used for internet services. In this case, you need an ONU with a CATV RF output.

When can you skip CATV?

If your network provides TV through IPTV, you usually don’t need a CATV port. IPTV is delivered as data through the network, so the TV service can use the ONU’s Ethernet connection instead.

3.3 USB Ports: The Underrated Utility Feature

A USB port may not be essential for every ONU, but it can be useful for certain maintenance and file-sharing tasks.

Common uses include:

• File sharing: Connect a USB storage device and share files across the local network.
• Firmware recovery: Some ONUs support firmware updates through a USB drive, which can be useful if the network connection is unavailable.
• Log export: Save system logs to a USB drive for troubleshooting.

Part 4: Power and Management — The Operator’s Perspective

So far, we’ve focused on subscriber-facing features. Now let’s look at what matters to the operator: power delivery and remote management.

4.1 PoE (Power over Ethernet): Simplifying Device Installation

PoE allows the ONU to power downstream devices — IP cameras, VoIP phones, Wi-Fi access points — through the Ethernet cable, eliminating separate power adapters.

Configurable options:

Per-port power enable/disable

Port priority settings (critical devices stay powered when budget is exceeded)

Standard support (802.3af up to 15.4W, 802.3at up to 30W, or 802.3bt for high-power devices)

When to use: This is most valuable in business and enterprise deployments. In residential settings, PoE is rarely used — home subscribers typically don’t have PoE-powered devices.

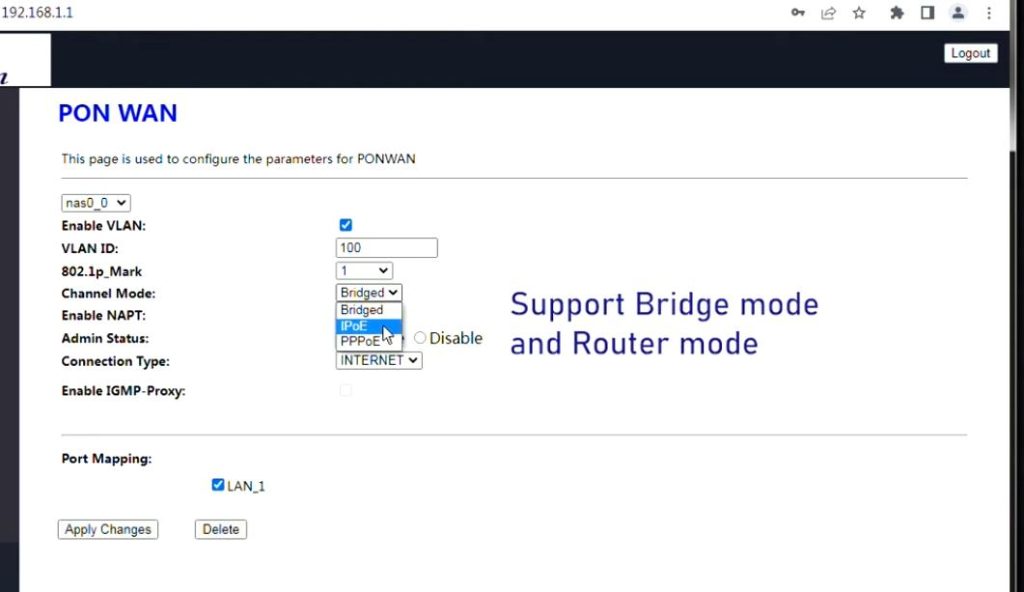

4.2 Bridge vs. Route Mode: Who Controls the Network?

This onu configuration choice determines the ONU’s role in the network.

4.3 QoS: Prioritizing What Matters

QoS ensures that voice and video traffic aren’t disrupted by large file downloads.

Key levers:

Traffic classification (by IP, port, or protocol)

Bandwidth guarantees (minimum and maximum limits per service)

Priority queuing (real-time traffic takes precedence)

When it’s essential: In households with multiple heavy users, or in business environments where VoIP and video conferencing are mission-critical.

4.4 Security: Protecting the Network and the Subscriber

ONUs offer several configurable security features:

• SPI firewall with basic DoS protection
• MAC address filtering (allow/block specific devices)
• IP/MAC binding (prevent spoofing)
• Admin access restriction (limit management to specific IPs or VLANs)

Critical best practice: Change the default admin password immediately. This single step prevents the vast majority of unauthorized access attempts.

4.5 Remote Management: Reducing Truck Rolls

For ISPs, remote management is a direct operational cost saver.

Supported protocols:

• TR-069 (CWMP): Full remote configuration, monitoring, firmware updates
• SNMP: Integration with NMS for polling and alerts
• OMCI: The ITU-T standard for managing ONUs over GPON/XGS-PON

Diagnostic tools built in:

Optical power monitoring (check fiber link quality)

Ping / Traceroute (test connectivity from the ONU itself)

System logs (detailed troubleshooting records)

Bottom line: ONUs with robust remote management reduce support costs and improve subscriber satisfaction by enabling faster issue resolution.

Part 5: Putting It All Together — Matching ONUs to Deployments

Now that we’ve covered every major feature, let’s step back and see how they combine in real-world scenarios.

The Decision Framework

Before selecting an ONU, ask yourself five questions:

• What’s the subscriber’s bandwidth tier? — This dictates port speed (GE, 2.5GE, or 10GE).
• What PON technology is deployed? — This is non-negotiable.
• Does the subscriber need voice or RF video? — Add FXS or CATV only if required.
• Is wireless necessary, and at what level? — Wi-Fi 6 for most, Wi-Fi 7 for premium tiers.
• Who manages the network? — Bridge mode for power users, Route mode for simplicity.

Common Configuration Scenarios

Frequently Asked Questions

Can I use any ONU with any OLT?

No. The ONU must support the same PON technology (such as GPON or XGS-PON) as the OLT. While some vendors support interoperability based on standards, full compatibility and access to all management features are often best achieved by pairing equipment from compatible vendors.

Is Wi-Fi built into every ONU?

No. Some ONUs are bridge-only devices with Ethernet ports only. Wireless gateway ONUs integrate Wi-Fi access points for direct home connectivity.

Do I need CATV support?

Only if your ISP delivers television services over RF overlay. If TV is provided through IPTV or streaming applications, a CATV port is generally unnecessary.

Should I choose Bridge mode or Router mode?

Bridge mode is recommended if you already have a dedicated router or require advanced network control. Router mode is better for most residential users who want an all-in-one gateway.

Is Wi-Fi 7 worth choosing?

If you’re deploying new fiber networks or offering multi-gigabit broadband, Wi-Fi 7 provides higher throughput, lower latency, and better support for multiple connected devices, making it a strong long-term investment.

Conclusion

Modern ONUs are available in a wide variety of hardware configurations and software features to meet the needs of residential, business, and enterprise deployments. By carefully evaluating Ethernet port options, Wi-Fi standards, voice interfaces, CATV support, management capabilities, and PON compatibility, you can select an ONU that delivers reliable performance today while remaining ready for future network upgrades. Whether you’re building a basic FTTH service or a premium multi-gigabit offering, choosing the right FTTH ONU configuration is key to providing a stable, scalable, and high-quality user experience.

If you’re evaluating ONU vendors or have specific deployment questions, feel free to leave a comment below or contact our team for personalized consultation. We’re happy to help you design a cost-effective, future-ready fiber solution.
