Industrial Gigabit Managed Switch–4 RJ45 + 2 Fiber Uplink Ports
Short Description:
The new generation Managed Industrial Switch with 4-Port 10/100/1000Base-TX and 2xGigabit uplink ports provide stable and reliable Ethernet transmission. With high-quality design and reliability. The BD-6S3204 support a wide range of management functions as well as Rapid Spanning Tree, Multiple Spanning Tree and Ethernet Ring Protection Switching (ERPS) prot…Description
Specification
Application
Order
Downloads/FAQ
Product Tags
Reviews
Description
The new generation Managed Industrial Switch with 4-Port 10/100/1000Base-TX and 2xGigabit uplink ports provide stable and reliable Ethernet transmission. With high-quality design and reliability. The BD-6S3204 support a wide range of management functions as well as Rapid Spanning Tree, Multiple Spanning Tree and Ethernet Ring Protection Switching (ERPS) protocols for network redundancy. IGMP functionality is supported to handle the multicast traffic, which is commonly used in IP CCTV deployment. With a dual power input design, The Industrial Managed Switches can offer redundant mechanisms for critical applications that need always-on connections. A 4 port RJ45 switch can also operate either at an industry-standard operating temperature range of –20 to 70°C. Housed in rugged DIN rail or wall mountable IP40 enclosures, these switches are perfect choices for harsh environments, such as industrial networking, and intelligent transportation systems (ITS) and are also suitable for many militaries and utility markets applications where environmental conditions exceed commercial product specifications.
Features
- 4x10/100/1000Base-TX RJ45 ports, 2x100/1000Base-FX fiber ports
- Support Auto-MDIX, and full/half duplex self-negotiation mode
- Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission
- Support 9K bytes giant frame, compatible with various extension protocol
- 4K MAC address table
- Support IEEE802.3az energy efficient Ethernet technology
- Electric 4KV surge protection, easy to use in outdoor environment
- Complete status indicator, working state at a glance
- Power input polarity protection design, no worry about wrong operation
- Full gigabit L2 management, easy to manage the industrial network by WebGUI
- Build up a redundant network with STP/RSTP
Industrial Case and Installation
- IP40 Aluminium case, Fanless design
- 9-56V DC redundant power with reverse polarity protection
- DIN-rail and wall mount installation
- –20 to +70℃ operating temperature
Industrial Managed Switches Specification
Physical Port
| RJ45 port and speed | 4x10/100/1000Base-TX |
| Fiber port and speed | 2x100/1000Base-FX |
Parameters
|
Ethernetstandards |
IEEE 802.3 for 10BaseT IEEE 802.3u for 100BaseT(X) and 100BaseFX IEEE 802.3ab for 1000BaseT(X) IEEE 802.3z for 1000BaseSX/LX/LHX/ZX IEEE 802.3x for flow control IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1p for Class of Service IEEE 802.1Q for VLAN Tagging |
| Packet buffer | 1Mbits |
|
Maximum packet length |
Up to 9k Bytes |
| MAC address table | 4K |
| Transmission mode | Store and Forward(full/half duplex mode) |
| Exchange property | Delay time: < 7μs
Backplane bandwidth: 12Gbps Packet forwarding rate: 1488100 (64Byte) |
LED Indicator
| Power | Connect-always |
| RJ45 | Link/Act: connect-always; data exchange-twinkle |
| Fiber | Link/Act: connect-always; data exchange-twinkle |
Power Information
| Power access mode | Phoenix terminal, DC seat |
| Redundant power input | DC 9-56V ,Redundant dual inputs |
| Overload protection | Yes |
| Power reverse | Support |
| Power consumption | Full-load<10W |
Software Features
| Redundant Network | Support STP/RSTP |
| Multicast Support | Support IGMP Snooping V1 |
| VLAN | Support IEEE 802.1Q 4K VLAN |
| QOS | Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA |
| Diagnostic Maintenance | Support port mirroring, Ping |
| Management Function | WEB |
| Security | Broadcast/Multicast Storm Protection, MAC filtering |
Introduction to DIP switches
| DIP Switch | State | Description |
| #1 | ON | RSTP Disabled |
| OFF | RSTP Enable(Default) | |
| #2 | ON | Port VLAN Enable |
| OFF | Port VLAN Disable(Default) | |
| #3 | ON | SFP Port is 100M |
| OFF | SFP Port 100/1000M(Default) | |
| #4 | Function Reserve |
NOTE:
1. RSTP switches to the ON position,which indicates RSTP is in disabled status.
2. VLAN switches to the ON position, indicating VLAN is enabled. All LAN ports can only communicate with the SFP uplinks when this option is enabled.
3. To take effect the DIP Switch function while the ethernet switch is in operation there is a need to reboot the Ethernet switch after tuning the DIP switch.
Physical Property
| Protection grade | IP40 aluminum case |
| Cooling mode | Natural cooling, no fan design |
| Dimensions | 120mm x 90mm x 35mm (L x W x H) |
| Installation mode | DIN trail/wall-mountable |
| Weight | 350g |
Working Environment
| Operating Temperature | –20℃~70℃ |
| Operating Humidity | 5%~90% non-condensing |
| Storage | -40℃~85℃ |
Warranty
| MTBF | 500,000 hours |
| Defects Liability Period | 3 year warranty, lifetime technical support |
Certification Standard
| EMI | EN55032 Class A, CISPR 32 FCC Part 15B Class A |
| EMS | EN61000-4-2(ESD), EN61000-4-3(RS), EN61000-4-4(EFT), EN61000-4-5(Surge), EN61000-4-6(CS), EN61000-4-8 |
| Collision | IEC60068-2-27 |
| Drop | IEC60068-2-32 |
| Vibration | IEC60068-2-6 |
| Safety grade | EN60950-1 |

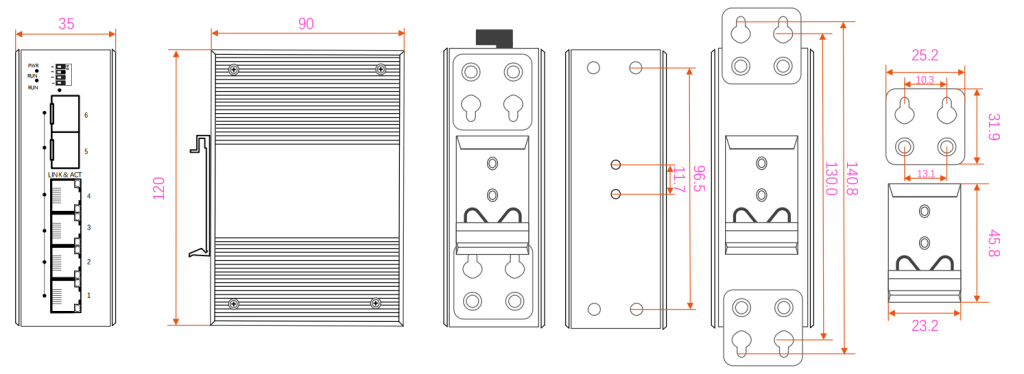

Dimensions （Unit: mm）
Package List
| Device | 1x Industrial Ethernet Switch |
| Installation Kit | 1x DIN-Rail Clip
2x Wall-Mount Kits |
| Documentation | 1 x Quick installation guide
1 x Warranty card 1x Product notice |
