288 core fiber cabinet Outdoor distribution Cross-Connect cabinet

Short Description:

Discover the ultimate outdoor fiber distribution cabinet designed for harsh environments. This 288 core fiber cabinet features rugged, anti-corrosive SMC construction with IP65-rated waterproof and dustproof sealing, ensuring reliable performance in extreme temperatures (-40°C to +60°C). Engineered for both floor-mounted and aerial installation, it offers flexible deployment for FTTx, PON, and CATV networks.

Payment Terms: Paypal,western union,L/C,D/A,D/P,T/T

Requst Price

Description

Specification

Application

Order information

Product Tags

Reviews

Description

Specification

Application

Order information

Product Tags

Reviews

Description

High-density 288-core fiber capacity and IP65-rated outdoor protection make this 288 core fiber cabinet an ideal solution for large-scale FTTH and FTTx network deployment. Designed as a centralized fiber connection point, it enables efficient fiber splicing, storage, cross-connection, and distribution while protecting critical optical components in harsh outdoor environments.

For telecom operators, ISPs, and network contractors, this Outdoor Fiber Distribution Cabinet simplifies fiber network expansion and maintenance. Its large internal capacity supports high-density fiber management, helping reduce installation complexity and providing sufficient space for future network upgrades. The robust SMC outdoor fiber optic cabinet offers excellent resistance against to moisture, dust, corrosion, and weather changes, ensuring stable operation in outdoor access networks.

The outdoor 288 core fiber cabinet provides flexible installation options, including floor-mounted and aerial installation, making it suitable for different FTTx deployment scenarios. With a well-designed internal structure, clear fiber routing, secure cable fixation, and proper bending radius protection, it improves installation efficiency and helps maintain reliable optical performance over the entire network lifecycle.

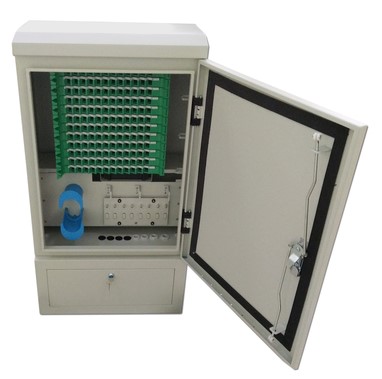

vertical view of outdoor 288core fiber cross-connect cabinet

288 core Fiber Cabinet Features

Standard case body, made of high intensity, anti-corrosive, anti-aging special composit e material(SMC), adapting various bad weather condition, with reliable sealing, water-pro of and damp proof.
Single/double door, dust proof and water proof. And protection level: 1P65
Good design for inner structure, easy installation.
Clear indication of splicing and distribution.
The adapter can be ST, FC, SC etc.
Enough fiber routing and storage space inside.
Reliable cable fixation device and grounding device.
Good design of splicing routing and guarantee bending radius of fiber optic.

outdoor fiber distribution cabinet Compliance

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999
RoHS

Specification

Specifications

Environmental Temperature: -40°C~+60°C
Relative Humidity: ≤85% (+30°C)
Air Pressure: 70~106KPa
Connector Loss (included repeatability and exchangeability ): ≤0.50dB Insertion loss: ≤0.20dB.
Return loss: PC≥45.0dB ,UPC≥50.0dB,APC≥60.0dB Insulating resistance: ≥2×104MΩ/500V (DC)
Voltage Resistance between High Voltage Protection Grounding and Rack: ≥3000V(DC), 1 min no puncture, no arc-over
Insulation Resistance between High Voltage Protection Grounding and Rack: ≥1000MΩ/500V (DC)
Flame Retardant: Standard GB/T5169.7—1985 compliant
YD/T778-2006 National Technical Standard of Optical Distribution Frame compliant
