What are the Main Elements of an Optical Receiver?

Fiber optic networks carry 99% of the world’s internet traffic. But without the optical receiver, all that light would be useless.

While optical transmitters get the glory, the receiver does the harder job: taking a weak, distorted light pulse that has traveled for miles and turning it back into clean, usable electrical data. If your video buffers or your CATV picture pixelates, chances are the optical receiver is struggling.

In this guide, we will break down:

• Receiver Optical Means
• The 5 core components and how they work together
• Optical Receiver Types
• Physical Factors That Affect Performance

Let’s dive in.

Receiver Optical Means

An optical receiver is a device that receives optical signals transmitted through a fiber optic cable and converts them into electrical signals that can be processed by networking, CATV, or communication equipment.

In simple terms:

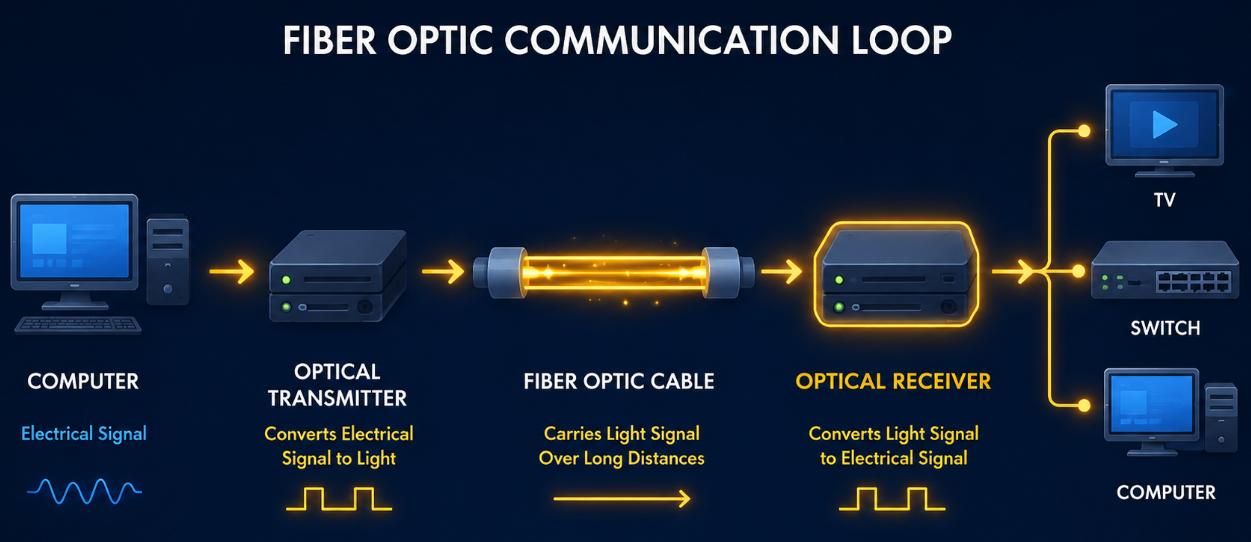

Electrical Signal → Optical Transmitter → Fiber Cable → Optical Receiver → Electrical Signal

Without the receiver, the transmitted light would have no practical value because most electronic devices operate using electrical signals rather than optical signals.

What Are the Main Elements of an Optical Receiver?

An optical receiver is not a single chip. It is a 5-stage assembly line, and each stage handles a specific job. If any stage fails, the whole system suffers.

Element 1: The Photodetector (The “Eye” that Catches Light)

This is the very first part of the receiver. It is a tiny piece of special material that acts like a light-catcher.

What it does: When the light pulses hit this part, it absorbs them. The energy from the light shakes loose electrons inside the material, which creates a very, very tiny electrical current.

Simple analogy: Imagine a solar panel on a calculator. When light hits the solar panel, it creates a little bit of electricity. The photodetector does the same thing, but on a super-small and super-fast scale.

Extra Point: There are two common types of photodetectors:

PIN Photodiode: This is the basic, standard model. It works great for most everyday fiber optic connections.

Avalanche Photodiode (APD): This is the “turbo” version. It has a built-in feature that multiplies the electrical current inside the photodetector itself. This is perfect for when the light signal is very weak (like from a cable that is many miles long).

Performance factor — Sensitivity:

The photodetector determines how weak a signal the receiver can “see.” Sensitivity is measured in dBm—lower is better. A receiver rated at -28 dBm can detect signals 6× weaker than one rated at -20 dBm. This matters for long-distance links and PON networks with many splitters.

Element 2: The Preamplifier (The “Booster” that Makes the Signal Strong)

The electrical current that comes out of the photodetector is extremely tiny—like a whisper in a crowded room. You can’t work with a whisper; you need a loud voice.

What it does: The preamplifier is the first booster. It grabs that weak, tiny current and makes it much bigger and stronger so the rest of the receiver can work with it.

Important detail: The most common type used here is called a Transimpedance Amplifier (TIA). Its special job is to change the electrical current into electrical voltage (which is easier for other electronic parts to read).

Performance factor — Noise Figure:

Every amplifier adds noise (electrical “hiss”). The TIA is the biggest contributor to the receiver’s overall noise. A high-quality TIA provides high gain with low noise. If the TIA is noisy, your Bit Error Rate (BER) increases—meaning the receiver misreads 1s as 0s. That leads to pixelated video, dropped VoIP calls, and retransmitted data packets.

Element 3: The Main Amplifier (The “Loudspeaker”)

After the preamplifier, the signal is stronger, but we need it even stronger to reach the final stages. This is where the main amplifier comes in.

What it does: This is a second booster. It takes the already-boosted signal and gives it one final, big push to bring it up to a strong, standard level.

Simple analogy: Think of a concert. The preamplifier is the microphone, and the main amplifier is the big speaker stack that makes the music loud enough for the whole stadium to hear.

Extra Point: This amplifier is designed to keep the signal strength steady, no matter whether the original light pulse was a little strong or a little weak. It’s like an automatic volume control.

Performance factor — Automatic Gain Control (AGC):

The main amplifier often includes AGC, which acts like an automatic volume knob. It keeps the output level steady whether the incoming light is strong (short cable) or weak (long cable). This is critical in CATV networks where different homes receive different signal strengths.

Element 4: The Signal Cleaner (The “Filter” that Removes Garbage)

By this point, the signal is strong, but it might be messy. Over a long journey through the fiber cable, the light signal can get stretched, smeared, or mixed up with unwanted noise.

What it does: This stage cleans everything up. It uses special electronic filters to remove background static (noise) and equalizers to fix any distortion.

Simple analogy: Imagine you are listening to an old vinyl record. There are crackles and pops in the background. A “cleaner” would remove those crackles so you only hear the music. That’s what this part does for your data.

Performance factor — Bandwidth:

Bandwidth determines how much data the receiver can handle per second. A cleaner with narrow bandwidth smooths out fast pulses, making it impossible to distinguish between rapid 1s and 0s. That is why a 1 Gbps receiver cannot simply be upgraded to 100 Gbps—the signal cleaner hardware must be redesigned. Modern data centers require receivers with bandwidths exceeding 50 GHz to support 400G and 800G Ethernet.

Performance factor — Dynamic Range:

The CDR must lock onto the timing whether the signal is very strong or very weak. A receiver with wide dynamic range works perfectly across varying fiber lengths. A narrow-range receiver might overload (distort) on short cables or fail to lock on long ones. In CATV networks, dynamic range is essential because signal levels vary significantly between subscribers.

Element 5: The Clock and Data Recovery (The “Brain” that Reads the Data)

This is the final and most important step. The signal is now strong and clean, but it’s still just a continuous wave of electricity. The receiver needs to figure out where one piece of information ends and the next begins.

What it does: This circuit is called Clock and Data Recovery (CDR). It does two things:

It figures out the “beat” or timing of the incoming data (like finding the rhythm of a song).

It uses that timing to decide if each moment is a “1” or a “0” in the digital code.

Extra Point: Without this part, the receiver would just see a blurry mess of electricity. The CDR is the “brain” that makes sense of it all and finally spits out the clean, neat digital electrical signal that your computer, TV, or phone can actually understand.

The Bonus Element: The Power Monitor (The “Fuel Gauge”)

Some optical receivers also have a built-in power monitor.

What it does: This tiny circuit constantly checks the strength of the incoming light.

Why it matters: If the light gets too weak, the monitor can send a warning signal to the network operator so they know there is a problem with the cable or the laser before the data stops flowing completely. It’s an early-warning system.

Optical Receiver Types

Different applications require different receiver designs because network architectures, transmission distances, and signal requirements vary significantly. Choosing the right optical receiver helps ensure stable performance, lower maintenance costs, and better signal quality.

CATV Optical Receivers

CATV optical receivers are specifically designed for cable television and broadband distribution networks. Their primary purpose is to convert optical signals carrying RF television channels into electrical RF signals that can be distributed to subscribers.

These receivers typically feature Automatic Gain Control (AGC) to maintain a consistent output level even when the incoming optical power fluctuates. This capability helps ensure stable picture quality and minimizes service interruptions. Modern CATV optical receivers also offer low distortion characteristics, allowing them to support a large number of analog and digital television channels simultaneously.

Telecom Optical Receivers

Telecom optical receivers are widely used in fiber optic communication systems such as GPON, XG-PON, XGS-PON, and long-haul transmission networks. These receivers are designed to recover high-speed digital data accurately over long distances.

Because telecom networks often operate over tens or even hundreds of kilometers, receiver sensitivity becomes extremely important. High-performance telecom receivers frequently use Avalanche Photodiodes (APDs) or advanced Digital Signal Processing (DSP) technologies to improve signal detection in low-power conditions.

Telecom optical receivers must also handle strict requirements for bit error rate (BER), synchronization, and network reliability. Their ability to recover weak optical signals makes them essential for modern broadband and telecommunications infrastructure.

Data Center Optical Receivers

Data center optical receivers are optimized for high-speed, short-to-medium distance communication between servers, switches, and storage systems. As cloud computing, artificial intelligence, and big data applications continue to grow, data centers require increasingly faster optical interconnections.

These receivers support high-speed protocols such as 10G, 25G, 40G, 100G, 400G, and even 800G Ethernet. Unlike telecom receivers that prioritize long-distance transmission, data center receivers focus on low latency, high bandwidth, and energy efficiency.

Compact form factors such as SFP+, QSFP28, and QSFP-DD integrate optical receivers directly into transceiver modules, enabling dense deployments in modern data centers. Their ability to process massive amounts of data with minimal delay is critical for cloud services and AI workloads.

Physical Factors That Affect Performance

While the electronics do the heavy lifting, the physical hardware matters too:

Optical Return Loss: Dirty or poorly polished fiber connectors cause light to reflect backward. These reflections confuse the receiver and create noise. Always use clean APC or UPC connectors.

Temperature Stability: Photodetectors and amplifiers drift with temperature. Outdoor cabinets can hit 60°C in summer. Industrial-grade receivers are designed to maintain sensitivity and bandwidth across wide temperature ranges—consumer-grade ones are not.

Conclusion

To put it all together in one easy sentence:

• The Photodetector catches the light and turns it into a tiny electric current.
• The Preamplifier makes that tiny current bigger.
• The Main Amplifier makes it even bigger.
• The Cleaner removes static and distortion.
• The Clock Recovery figures out the timing and reads the final data.

So, the next time you stream a movie or make a video call, remember the humble optical receiver. It is the quiet worker at the end of every fiber optic cable, tirelessly translating pulses of light into the digital world we live in. Without all of these key elements working together, our modern internet simply wouldn’t exist.
