4 channel HDMI RF modulator – SDI to DVB-T ISDB-T Encoder
Short Description:
The 4 channel HDMI RF modulator integrate encoding and modulating function. The 4channel HDMI encoder is equipped with 4 HDMI (4 SDI optional) channels input and 1 AS I input(optional) and output via 2 ASI ports(optional) and 1 DATA (4*SPTS or 2 or 4 MPTS–as per carrier numbers) output over UDP, RTP/RTSP. The 4 channel HDMI RF modulator features extremely low latencyDescription
Specification
Application
Order
Downloads/FAQ
Product Tags
Reviews
Description
The 4 channel HDMI RF modulator encoder are all-in-one devices which integrate encoding (MPEG-2HD/SD, MPEG-4/AVC H.264 HD/SD) and modulating to convert V/A signals into Digital RF output. The 4channel HDMI encoder is equipped with 4 HDMI (4 SDI optional) channels input and 1 AS I input(optional) and output via 2 ASI ports(optional) and 1 DATA (4*SPTS or 2 or 4 MPTS–as per carrier numbers) output over UDP, RTP/RTSP. The 4 channel HDMI RF modulator features extremely low latency, making it suitable for live broadcasting, surveillance distribution, and real-time video delivery applications.
In addition to DVB-T RF output, the HDMI to DVB Modulator supports multiple IP output formats including UDP, RTP, and RTSP, enabling simultaneous RF and IPTV service deployment. Optional ASI input and output interfaces provide flexible remultiplexing capabilities for professional broadcast environments.
With excellent RF performance, MER≥40dB, web-based management, LCD front-panel control, and support for multiple audio encoding formats, this ISDB-T Encoder provides a reliable and cost-effective solution for digital television distribution.
4 channel HDMI RF modulator Main Features
- 4* HDMI/SDI inputs
- MPEG2 & MPEG4 AVC/H.264 HD/SD video encoding
- Up to 1920*1080@50P/60P (MPEG4 AVC/H.264)
- Up to 1920*1080@50I/60I (MPEG2 HD)
- Huge video buffer (for SDI interface)
- MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC, AC3 2.0 (Optional) audio encoding
- Resolution Downscale(the same frame rate)
- 1*ASI input for re-mux and ASI out—(Optional);
- Support CC (closed caption ) for SDI interface
- Support IP (4*SPTS or 4*MPTS) output over UDP, RTP/RTSP protocol
- Extremely low latency
- LCN support (Logical Channel Number)
- Excellent modulation quality MER≥40dB
- DVB-T RFoutput, Frequency range 50Mhz~960Mhz
- LCD display, Remote control and firmware
- Web NMS management; Updates via web

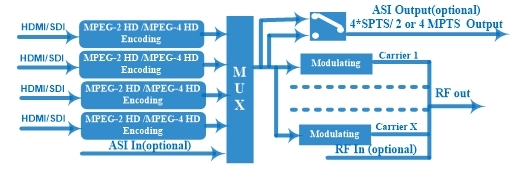

HDMI to DTV modulator Principle Chart
Appearance and Illustration
Front Panel Illustration:
| 1. LCD Screen |
| 2. NMS Port |
| 3. DATA Port |
| 4. Power and Alarm Indicators |
| 5. Lock 1 and Lock 2: HDMI/SDI input locking status; Lock 3: ASI in locking status. Lock 4: useless |
| 6. Up and Down, Left and Right Buttons |
| 7. Enter Button: for confirm |
| 8. Menu Button: for back step |
| 9. Lock Button: To Lock the screen / cancel the lock state |

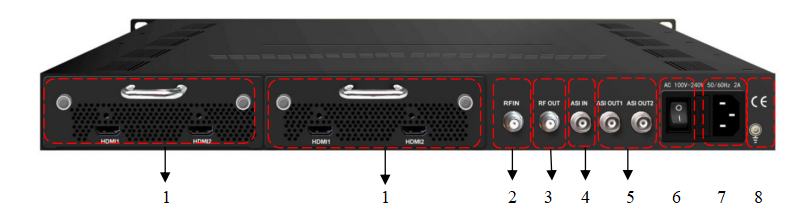

HDMI to DTV modulator (HDMI input model) Rear Panel Illustration:
| 1. HDMI Input interface |
| 2. RF in for mix |
| 3. RF Output interface |
| 4. ASI in for mux |
| 5. ASI out |
| 6. Power Switch |
| 7. Power Socket |
| 8. Grounding |

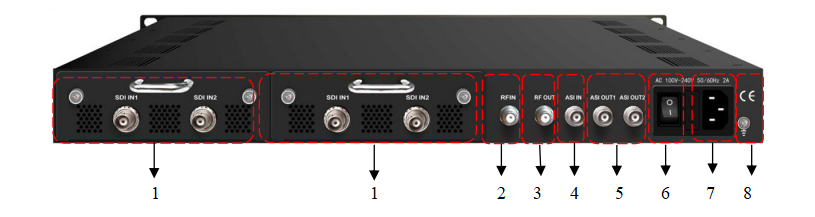

SDI to ISDB T encoder (SDI input model) Rear Panel Illustration:
| 9. SDI Input interface |
| 10. RF in for mix |
| 11. RF Output interface |
| 12. ASI in for mux |
| 13. ASI out |
| 14. Power Switch |
| 15. Power Socket |
| 16. Grounding |
Specification
| HDMI Encoder Board
|
Video | Input | HDMI*2 on each board | ||||||||||||||||||||||||||||||||||||
| Encoding | MPEG2; MPEG4 AVC/H.264 | ||||||||||||||||||||||||||||||||||||||
| Bitrate | 1-19.5Mbps | ||||||||||||||||||||||||||||||||||||||
| Resolution | 1920*1080_60P, 1920*1080_50P, (-for MPEG4 AVC/H.264 only)
1920*1080_60i, 1920*1080_50i, 1280*720_60p, 1280*720_50P 720*480_60i, 720*576_50i |
||||||||||||||||||||||||||||||||||||||
| Low Delay | Normal, Mode 1, Mode 2, Manual | ||||||||||||||||||||||||||||||||||||||
| Chroma | 4:2:0 | ||||||||||||||||||||||||||||||||||||||
| Aspect Ratio | 16:9,4:3 | ||||||||||||||||||||||||||||||||||||||
| Audio | Encoding | MPEG1 Layer II;MPEG 2-AAC; MPEG 4-AAC and Dolby Digital AC3 2.0 (optional) | |||||||||||||||||||||||||||||||||||||
| Dialog Normalization
(Applicable for DD AC3 encoding only) |
-31 ~ -1 dB | ||||||||||||||||||||||||||||||||||||||
| Sample rate | 48KHz | ||||||||||||||||||||||||||||||||||||||
| Bitrate | 64/96/128/ 192/256/320kbps | ||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||
| Modulator Section | DVB-T | Standard | DVB-T | ||||||||||||||||||||||||||||||||||||
| Bandwidth | 6M, 7M, 8M | ||||||||||||||||||||||||||||||||||||||
| Constellation | QPSK, 16QAM, 64QAM | ||||||||||||||||||||||||||||||||||||||
| Code rate | 1/2, 2/3, 3/4, 5/6, 7/8. | ||||||||||||||||||||||||||||||||||||||
| Guard Interval | 1/32, 1/16, 1/8, 1/4 | ||||||||||||||||||||||||||||||||||||||
| Transmission Mode | 2K, 4K, 8K | ||||||||||||||||||||||||||||||||||||||
| MER | ≥40dB | ||||||||||||||||||||||||||||||||||||||
| RF frequency | 50~960MHz, 1KHz step | ||||||||||||||||||||||||||||||||||||||
| RF Out | 4*DVB-T carriers(40MHz bandwidth) | ||||||||||||||||||||||||||||||||||||||
| RF output level | -20~ -3dbm, 0.1db step | ||||||||||||||||||||||||||||||||||||||
| General | System | Local interface | LCD + control buttons | ||||||||||||||||||||||||||||||||||||
| Remote management | Web NMS | ||||||||||||||||||||||||||||||||||||||
| Stream Out | 2 ASI out (BNC type, same one mirror out ts as one of 4/2 MPTS outputs and 4 SPTS outputs) | ||||||||||||||||||||||||||||||||||||||
| IP (4 MPTS & 4 SPTS) out over UDP, RTP/RTSP | |||||||||||||||||||||||||||||||||||||||
| DATA Port | 1000M | ||||||||||||||||||||||||||||||||||||||
| NMS interface | RJ45, 100M | ||||||||||||||||||||||||||||||||||||||
| Language | English | ||||||||||||||||||||||||||||||||||||||
| Physical Specification | Power supply | 100~240VAC, 50/60Hz | |||||||||||||||||||||||||||||||||||||
| Dimensions | 482*400*44mm | ||||||||||||||||||||||||||||||||||||||
| Operation temperature | 0~45℃ | ||||||||||||||||||||||||||||||||||||||
Application
Order
| Product Model | Descriptions | Inquiry |
|---|---|---|
| BD-HDMI-RF-4L | 4channel HDMI to DVB-T ISDB-T Encoder | Request Price |
| BD-SDI-RF-4L | 4channel SDI input, DVB-T ISDB-T Encoder | Request Price |
