8 Port GSM VoIP Gateway LTE GSM to IP with VoLTE and SMS API
Short Description:
8 Port GSM VoIP Gateway LTE supports GSM, WCDMA, and LTE networks and is compatible with mainstream VoIP platforms, supports SMS sending and receiving, integrate HTTP API for SMS ApplicationDescription
Specification
Application
Order
Downloads/FAQ
Product Tags
Reviews
Description
The 8 Port GSM VoIP Gateway is a flexible IP telephony solution designed to connect mobile networks with VoIP networks, enabling reliable Mobile-to-VoIP and VoIP-to-Mobile communication for enterprises, SMEs, and business offices. Available in 4-channel and 8-channel configurations, the GSM VoIP Gateway supports GSM, WCDMA, and LTE networks and is compatible with mainstream VoIP platforms through SIP v2.0. Designed for convenient deployment and maintenance, the gsm to ip gateway features hot-swappable SIM card slots, allowing SIM cards to be changed without dismantling the equipment.
Beyond voice services, the 8 PortGSM/LTE VoIP Gateway provides comprehensive SMS and USSD capabilities. It supports SMS sending and receiving, SMS-to-email, email-to-SMS, SMPP, and HTTP API integration. With the open HTTP API, users can integrate SMS functions into their own applications and send SMS/USSD messages or bulk SMS messages from external systems.
8 port GSM VoIP Gateway Key Features
- 4 or 8 Channels GSM or LTE
- Powerful Embedded CPU
- Compatible with LTE-FDD/LTE-TDD/WCDMA/GSM Networks
- Compatible with Mainstream VoIP Platform
- Hot Swappable SIM Cards
- Voice over LTE (VoLTE)
- HTTP API for SMS Application Integration
- SMS to Email & Email to SMS
- Flexible Dial Rules & Manipulation Rules
- Auto CLIP
- Remote SIMs Management (optional)

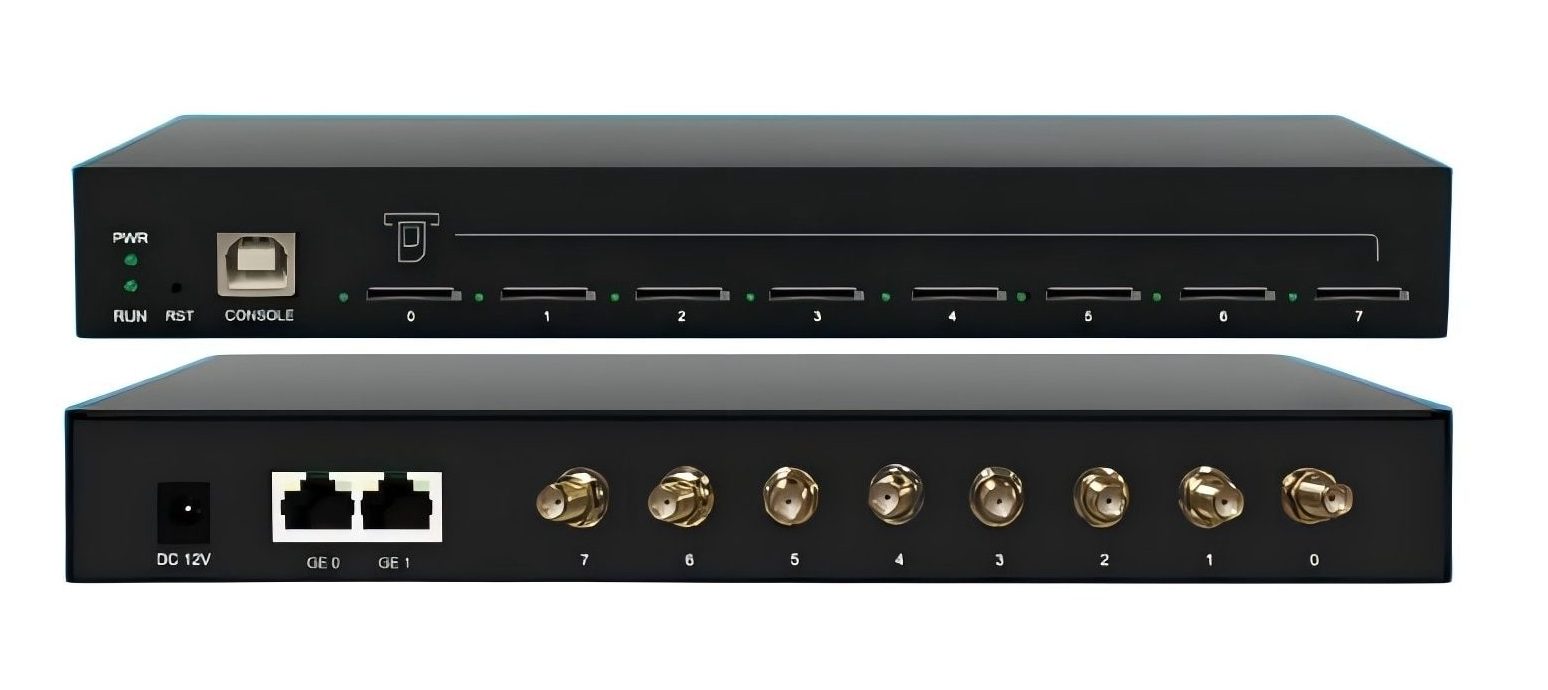

Hardware Interfaces
- Mobile: 4 or 8 Channels
- SIM Card slots: 4 or 8
- Antennas Connectors: SMA
- Ethernet Interfaces:
- 2*10/100/1000 Base-T, RJ45
- LED Indicators:
- Power, RUN, Channel indicator
- Console:
- 1* RS232 (USB-B connector)
- RST/PWR Button
Specification
VoIP & Media
- Protocol: SIP v2.0, RFC3261
- SIP UDP/TCP/TLS
- RTP/SRTP
- Codecs:
- G.729AB, PCMU, PCMA, G.723.1
- Silence Suppression
- Comfort Noise Generator(CNG)
- Voice Activity Detection(VAD)
- Echo Cancellation
- Dynamic Jitter Buffer
- DTMF: RFC2833, SIP Info
- Call Progress Tone Generation
- Programmable Gain Control
- NAT: STUN, Dynamic NAT, Static NAT
LTE Frequency Bands
- BD-GSM-8W-4/8T VoLTE
- gateways with several options:
- Type A:
- FDD: B2/B4/B12
- WCDMA: B2/B4/B5
- Type E:
- FDD:B1/B3/B5/B7/B8/B20
- TDD: B38/B40/B41
- WCDMA: B1/B5/B8
- GSM:900/1800MHz
- Type V:
- FDD:B4/B13
- Type J:
- FDD:B1/B3/B8/B18/B19/B26
- TDD:B41
- WCDMA:B1/B6/B8/B19
- Type AU:
- FDD:B1/B2/B3/B4/B5/B7/B8/B28
- TDD:B40
- WCDMA: B1/B2/B5/B8
- GSM: 850/900/1800/1900
8 port GSM VoIP Gateway Maintenance
- Web/Telnet Configuration
- Configure Backup/Restore
- Firmware Upgrade by HTTP
- Factory Reset
- CDR (10000 CDRs Storage Locally)
- Syslog/Filelog
- Ping and Tracert
- Traffic statistics: TCP,UDP,RTP
- VoIP Call Statistics
- PSTN Call statistics: ASR,ACD,PDD
- Voice Diagnose with Loopback
- IVR Customization
- SIP/RTP/PCM Capture
- SIMCloud Management
- Centralized Management(DMS)
- Network Management System
Physical Features
- Power Supply:
- 100-240V, 50-60Hz @DC12V 2A
- Power Consumption: <25w
- Temperature(Operation): 0 ℃-40 ℃
- (Storage): -20 ℃-80 ℃
- Operation Humidity: 10%-90%
- Dimension(W/D/H): 250*156*32.5mm
- Unit Weight: 1.07kg
8 port GSM VoIP Gateway Frequency Bands(2G/3G)
- BD-GSM-W-4/8G:
- GSM Gateway:
- 850/900/1800/1900MHz
- BD-GSM-W-4/8W：
- WCDMA Gateway with two options
- A: WCDMA 850/1900MHz and GSM
- 850/900/1800/1900MHz
- B: WCDMA 900/2100MHz and GSM
- 900/1800MHz
