CAT5E UTP 24AWG/BC PVC JACKET CABLE

CAT5E UTP 24AWG/BC PVC JACKET CABLE

Short Description:

Features Supports transmission of digital and analogue voice, data and video signal ● Products adopt FR PVC Jacket ●Rated Temperature: -20° to +70° Specification Conductor Material Bare Copper  Diameter 0.50±0.02mm Insulation    Material  HDPE Thickness ≥0.18mm Diameter 0.91±0.05mm Rip-cord Material Nylon Jacket   Material FR-PVC Diameter 5.2±0.2mm…
  • Payment Terms: Paypal,western union,L/C,D/A,D/P,T/T

  • Description

    Specification

    Application

    Order information

    Q&A

    Product Tags

    Reviews

    Description

    Features

    • Supports transmission of digital and analogue voice, data and video signal
      ● Products adopt FR PVC Jacket
      ●Rated Temperature: -20° to +70°

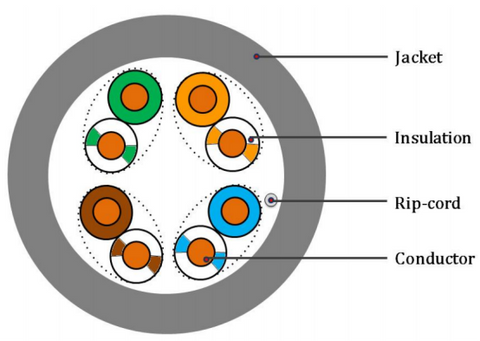

    Specification

    Conductor Material Bare Copper
     Diameter 0.50±0.02mm
    Insulation



     Material  HDPE
    Thickness ≥0.18mm
    Diameter 0.91±0.05mm
    Rip-cord Material Nylon
    Jacket



    Material FR-PVC
    Diameter 5.2±0.2mm
    Twisted pair N/A



    Pair 1 : Blue, White/Blue

    Pair 2 : Orange, White /Orange

    Pair 3 : Green, White/Green

    Pair 4 : Brown, White/Brown

    CAT5E UTP Cable Mechanical Characteristics
    Temperature Rating Installation O℃ to+ 60℃
    Operating -20℃-75℃
    Tensile Strength Before ≥13.8Mpa
    Elongation Aging ≥100%
    Aging Condition 100℃×168hours
    After ≥85% of unaged
    Aging ≥50% of unaged
    Marking :
    CAT5E UTP 4PR/24AWG Bare Copper TIA/EIA 568B ISO/IEC11801 001M.002M…305M
    Packing :
    ● 305m per Reel
    ● 2 roll per carton
