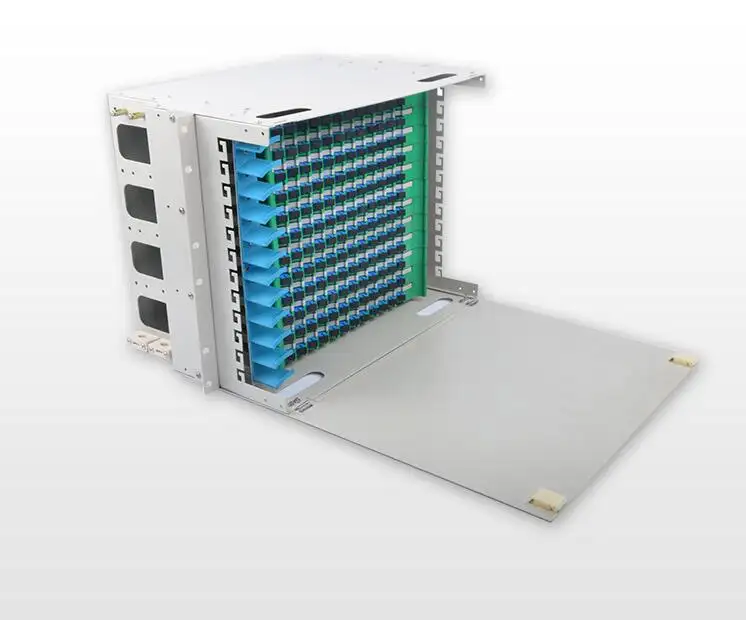

144 Core Optical Fiber Distribution Frame ODF 8U Rack Mount
Short Description:
optical fiber distribution frame ODF is used for cable fixation, termination, splicing and patching, 19inch 8U rack mount ODFDescription
Specification
Application
Order information
Q&A
Product Tags
Reviews
Description
The 144 Cores optical fiber distribution frame is used for cable fixation, termination, splicing and patching. The ODF fiber termination is widely used in Optical Distribution Frame of high density in central office.
Feature:
- Innovation: For 12 fibers Splice and Distribution Integrated Trays and outdoor cross-connect cabinet, we improve our products according to customers’ needs.
- Modular design: 12 fibers Splice and Distribution Integrated Trays are adopted for easy installation and maintenance. All components are in the form of modules to achieve flexible configuration. Components of different models are interchangeable, which shortens delivery time, reduces costs, and simplifies installation and maintenance.
Specification
Rack mount ODF Specification:
| Housing Material | cold rolled steel |
| Splice and Distribution Tray Capacity | 12 pieces of SC, FC or ST adaptors (12 fibers); 12 pieces of duplex LC adaptors (24 fibers) |
| Applicable Adaptor | SC, FC (duplex LC or ST is optional) |
| Dimension | 483x255x360mm , rack mount |
144 Cores optical fiber distribution frame ODF Technical Parameters:
| Fiber Bending Radius | >37.5mm (protective tubes are furnished for fibers passing through metallic holes.) |
| Cable Bending Radius | >15 times of cable diameter |
| Nominal Working Wavelength | 850nm, 1310nm, 1550nm |
| Insertion Loss | ≤0.2dB |
| Rack Mount ODF Return Loss | ≥45dB (PC), ≥50dB (UPC), ≥60dB (APC) |
| Durability | >1,000 times |
| Insulation Resistance | ≥1,000MΩ/500V(DC) |
| Voltage Resistance | ≥3,000V(DC), 1 min no puncture, no arc-over |
| Vertical Pressure | >980N |
| Atmospheric Pressure | 70~106KPa |
| Relative Humidity | ≤95% (+40°C) |
| Operating Temperature | -40°C~+60°C |
| Storage Temperature | -40°C~+85°C |
Application
Order information
| Product Model | Descriptions | Inquiry |
|---|---|---|
| BD-ODF-144 | 19 inch Rack Mount ODF, with 12 piece of 12 fibers Splice and Distribution Integrated Tray, with adaptors, pigtail or patch cord | Request Price |
