Rack Mount ODF Module type, 12-48 core, LC SC FC ST adapter selectable

Rack Mount ODF Module type, 12-48 core, LC SC FC ST adapter selectable

Short Description:

A rack-mount ODF (Optical Distribution Frame) is designed to be mounted in a standard communication rack or cabinet. They are commonly used in data centers, telecommunications facilities. 19Inch Rack Mount ODF is used for cable fixation, termination, splicing and patching. The ODF is widely used in 19” Optical Distribution Frame of high density in central of…
  • Payment Terms: Paypal,western union,L/C,D/A,D/P,T/T

  • Description

    Specification

    Application

    Order information

    Product Tags

    Reviews

    Description

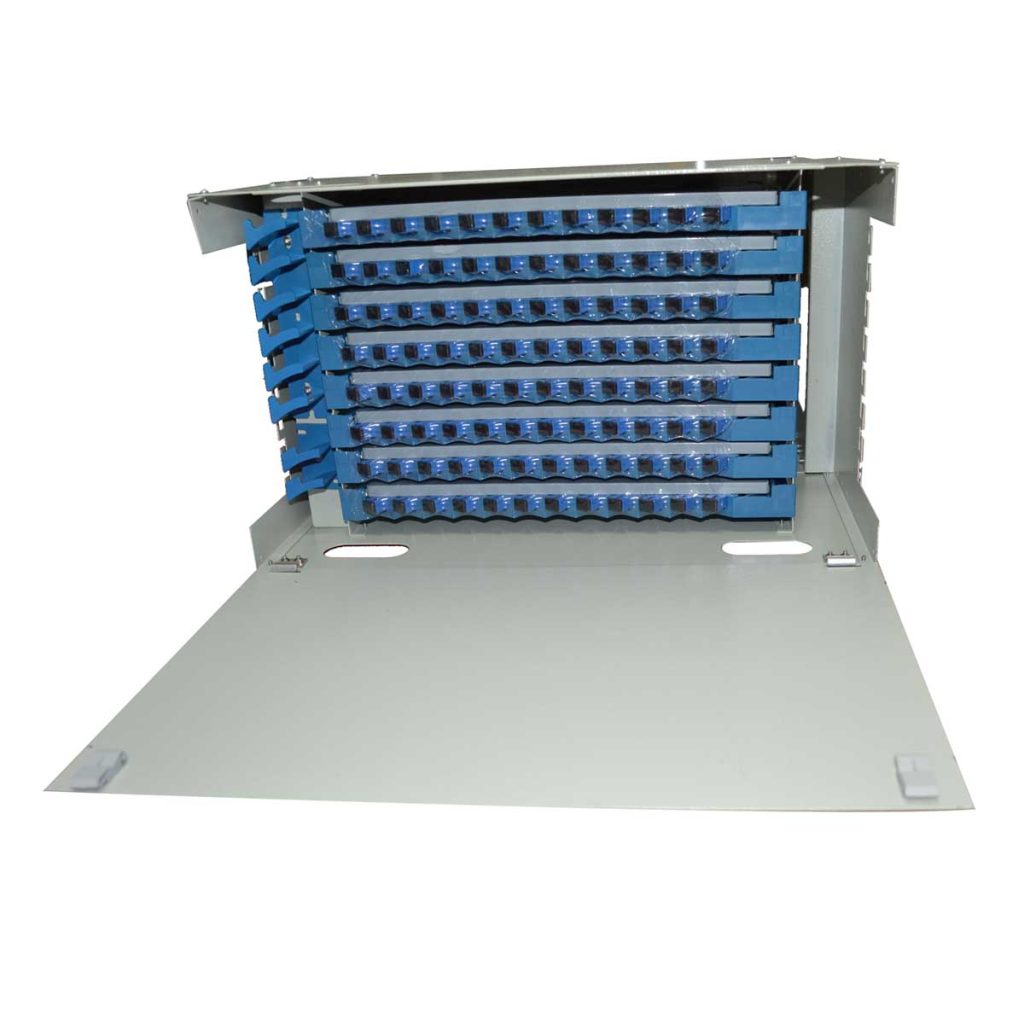

    A rack-mount ODF (Optical Distribution Frame) is designed to be mounted in a standard communication rack or cabinet. They are commonly used in data centers, telecommunications facilities. 19Inch Rack Mount ODF is used for cable fixation, termination, splicing and patching. The ODF is widely used in 19” Optical Distribution Frame of high density in central office.

    Feature:

    Innovation: For 12 fibers Splice and Distribution Integrated Trays and outdoor cross-connect cabinet, we improve our products according tocustomers’ needs.

    Modular design: 12 fibers Splice and Distribution Integrated Trays are adopted for easy installation and maintenance. All components are in the form of modules to achieve flexible configuration. Components of different models are interchangeable, which shortens delivery time, reduces costs, and simplifies installation and maintenance.

    Specification



    Housing Materialcold rolled steel
    Splice and Distribution Tray Capacity12 pieces of SC, FC or ST adaptors (12 fibers);
    12 pieces of duplex LC adaptors (24fibers)
    Applicable AdaptorSC, FC (duplex LC or ST is optional)
    Installation Methodrack mount
    Dimension (H×W×D)44.5×485×285mm (1U);
    90×485×285mm (2U);
    132×485×285mm (3U);
    180×485×285mm (4U);

    Technical Parameters:

    Fiber Bending Radius>37.5mm (protective tubes are furnished for fibers passing through metallic holes.)
    Cable Bending Radius>15 times of cable diameter
    Nominal Working Wavelength850nm, 1310nm, 1550nm
    Insertion Loss≤0.2dB
    Return Loss≥45dB (PC), ≥50dB (UPC), ≥60dB (APC)
    Durability>1,000 times
    Insulation Resistance≥1,000MΩ/500V(DC)
    Voltage Resistance≥3,000V(DC), 1 min no puncture, no arc-over
    Vertical Pressure>980N
    Atmospheric Pressure70~106KPa
    Relative Humidity≤95% (+40°C)
    Operating Temperature-40°C~+85°C
    Storage Temperature-40°C~+85°C



    Application
    Order information
    Product ModelDescriptionsInquiry
    BD-ODF-1219 inch Rack Mount ODF, with 1 piece of 12 fibers Spliceand Distribution Integrated Tray, without adaptors, pigtail orpatchcordRequest Price
    BD-ODF-2419 inch Rack Mount ODF, with 2 pieces of 12 fibers Spliceand Distribution Integrated Tray, without adaptors, pigtail orpatchcordRequest Price
    BD-ODF-4819 inch Rack Mount ODF, with 4 pieces of 12 fibers Splice and Distribution Integrated Tray, without adaptors, pigtail or patchcordRequest Price
    BD-ODF-7219 inch Rack Mount ODF, with 6 pieces of 12 fibers Spliceand Distribution Integrated Tray, without adaptors, pigtail orpatchcordRequest Price
