FTTH 8 Port optical receiver catv

FTTH 8 Port optical receiver catv

Short Description:

Overview The Baudcom FTTH 8 Port optical receiver is specially designed for FTTH-fiber to the Home n…
  • Payment Terms: Paypal,western union,L/C,D/A,D/P,T/T

  • Description

    Specification

    Application

    Order information

    Q&A

    Product Tags

    Reviews

    Description

    Overview

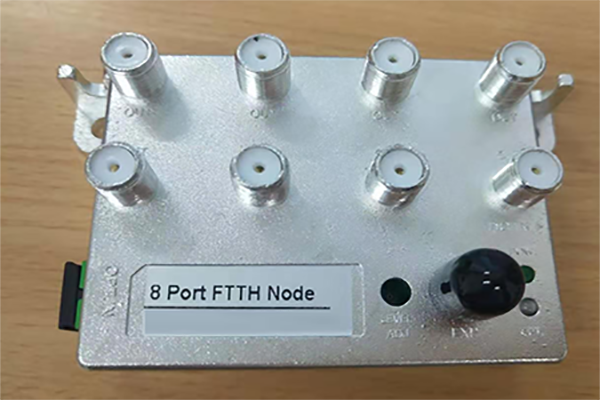

    The Baudcom FTTH 8 Port optical receiver is specially designed for FTTH-fiber to the Home network structure. It has an 8-way node for outputting RF signals, which equals to a built-in CATV splitter and is cost-effective for projects. It is mainly used for Cable TV Network RF Signal Distribution FTTH FTTP FTTB FTTX and much more.

    1.input: -15dBm—+2dBm

    output: 85dBμV(±1 dBμV),can also customize for customers

    1. Can be used GEPON internet.

    Technical parameters

    Performance unit Index
    FTTH
    Optical properties
    Receiving optical power dBm -15~+2
    Optical reflection loss dB >45
    Light receiving wavelength nm 1100~1600 Or

    1550 (filter) Optional

    Optical fiber connector FC/APC SC/APC etc. optional
    Link characteristic
    (C/N) dB ≥50
    (C/CTB) dB ≥65
    (C/CSO) dB ≥63
    RF characteristic
    Frequency range MHz 45~1200
    In-band flatness dB ±0.5(45-550MHz)

    ±0.75(550-750/862/1000MHz)

    Output level dBμV 85±1 dBμV)

    About FTTH, 3 advantages we have:

    1: AGC function( optical automatic control)

    1. Output power maxim 85dbuv
    2. 3:our bandwidth :45~1200MHz

    The Baudcom F-RF system is used in transmitting and distributing CATV RF signals through fiber-optic cable. The transmitter transfers the received RF signals (870 MHz) into optical signals. The optical signals can be distributed into multiple endpoints through a coupler, or can operate for over 20 miles through single mode fiber. The CATV optical receiver can be connected to 8 TV sets, which equals to a built-in CATV splitter and is cost-effective for projects.
