Outdoor IP68 fiber termination box 48 Fiber Capacity PLC Splitter – Wall/Pole Mount
Short Description:
The fiber termination box is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management can be installed by the way of wall mount fiber distribution box or poled-moun…Description
Application
Order information
Product Tags
Reviews
Description
The fiber termination box is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management can be installed by the way of wall mount fiber distribution box or poled-mounted for the FTTx network building.
Features:

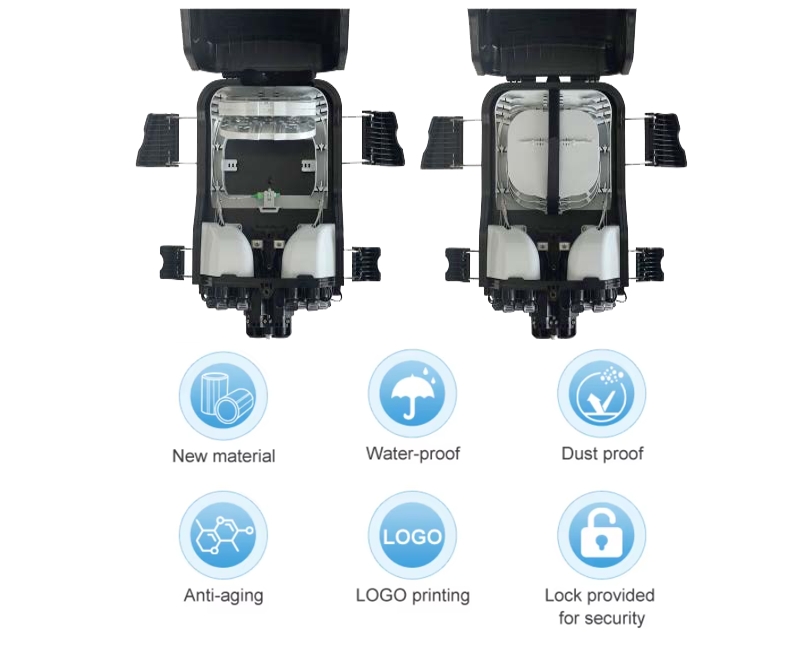

- Total enclosed structure.
- Material: ABS, wet-proof, waterproof, dust-proof, anti-aging, protection level up to IP68.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution…etc all in one.
- Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
- Box can be installed by the way of wall mount fiber distribution box or poled-mounted, suitable for both indoor and outdoor use.
Fiber termination box Specification:
| Items | Specification |
| Item No | BD-FTH-16C |
| Exportation | 16C |
| Size | 320*214*133mm |
| Material | ABS |
| Waterproof | IP68 |
| Port Configuration 1 | Support 12 Pcs Fast Connect Connectors(can upgrade to 16 Pcs) |
| Min.2 legacy ports for traditional drop cables | |
| Connector Detail | 4 x Pre-terminated Duplex LC/APC Connector |
| 8 x Pre-terminated Simplex SC/APC Connector | |
| PLC Splitter | 4 mini Steel Type PLC Splitters |
Arguments:
| Environmental requirement | |
| Working temperature | -40℃～+85℃ |
| Relative humidity | ≤85% (+30℃) |
| Atmospheric pressure | 70KPa~106Kpa |
| Main technical data sheet | |
| Insertion loss | ≤0.15dB |
| UPC return loss | ≥50dB |
| APC return loss | ≥60dB |
| Thunder-proof technical data sheet | |
| The insulation resistance between the grounding device and the metal parts of the box is no less than 2M Ω/500V (DC); IR≥ 2M Ω/500V | |
| The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flash over; U≥3000V | |
fiber termination box Configuration table:

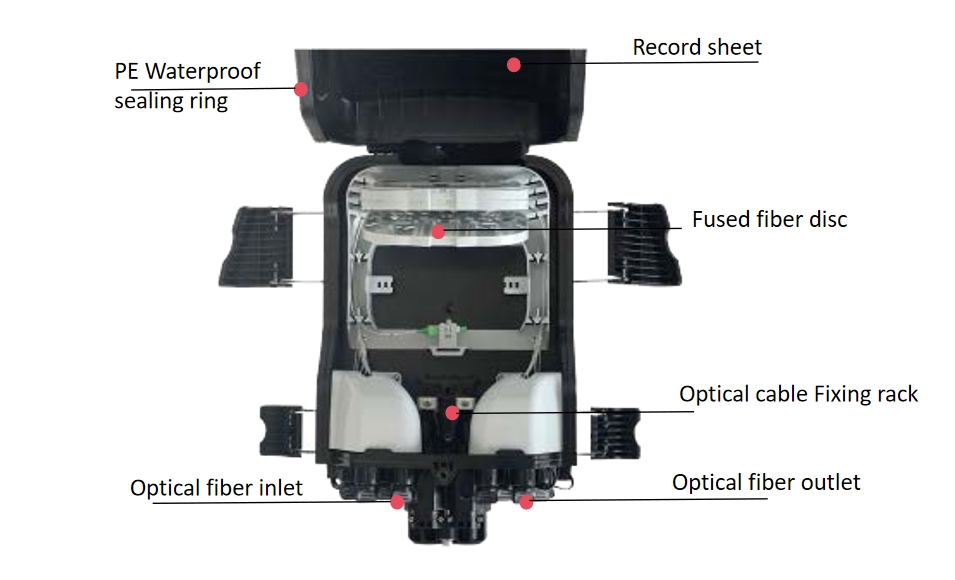

| Model | Size (Pic 1)
A*B*C (mm) |
Max Capacity | Installation Size
(Pic 2) D*E*F(mm) |
Into the largest cable diameter (mm) | Maximum size of branch hole
(mm) |
Waterproof

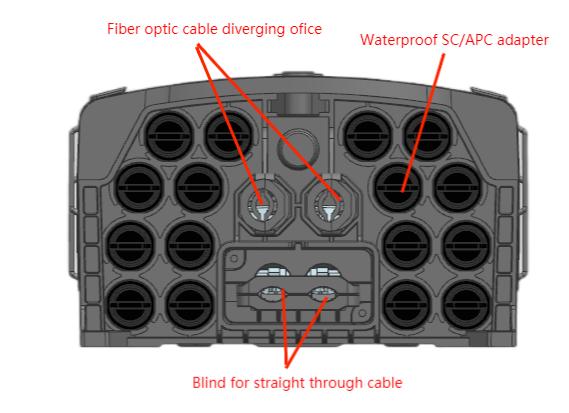

SC/APC adaptr |
| BD-FTH-16C | 320*214*133 | 48 | 52*166*166 | ᴓ8~14 | ᴓ16 | 16 |
Fiber terminal box cable ways:
Product cable ways:
Related Article：How to Choose the Right Rack Mount PLC Splitter？
Application
Fiber optic cable bifurcation:
Wall mounted installation and Pole mounted installation
Wall/Pole Mount
