720 core ODF High Density Optical Distribution Frame
Short Description:
Our 720 core ODF frame offers a massive capacity of 720 fibers in a compact footprint, making it the ideal solution for space-constrained data centers and central offices. Its innovative The modular design with pull-out units simplifies splicing, patching, and maintenance, drastically reducing downtime.Description
Specification
Application
Order information
Product Tags
Reviews
Description
Our High Density Optical Distribution Frame transforms complex cable management from a challenge into a streamlined operation. The intelligent modular structure and pull-out units simplify splicing, patching, and maintenance, drastically reducing downtime and operational costs. By ensuring a bend radius of over 40mm and offering robust protection, this frame guarantees the longevity and signal integrity of your critical fiber connections, giving you peace of mind that your network is both high-performing and future-proof.
By consolidating 720 fibers into a single standard 19-inch rack cabinet, this high-density ODF dramatically reduces rack space consumption, enabling you to replace multiple conventional frames with a single unit and directly delay or eliminate costly data center floor expansion projects. At just 800×400×2000mm, this frame delivers industry-leading 720-core density in a footprint that maximizes every square meter of your central office or colocation facility.
720 core ODF Feature:

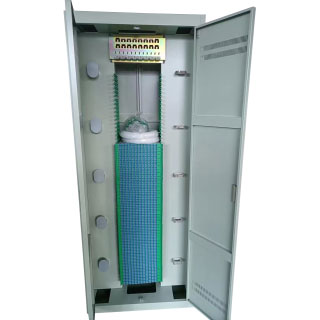

720 core Rack Mount ODF
- Network odf distribution frame support 720core large capacity,high density
- Modular structure, 72 fibers fusion unit rack mount odf, splicing & distribution integration module, easy to adjust fusion and distribution units.
- Suitable for inserting installation of SC, FC and ST adaptor.
- Meet the demand of termination for both zonary cables and non-zonary cables
- Clear marking,fusion and distribution is marked for each odf fibers.
- Every unit could be pulled out alone,easy to operate with the function of protecting fiber connection point and fiber storage
- Faced cable entry, safe and flexible,mounting against wall or back-to-back installation.
- Separate incoming and outgoing ports for cables,pigtails and patch cords
- Reliable stripping,protection,fixing and earthing devices
- Supply all kinds of protection accessory to protect fibers against mechanical hurt
- Accomplishing scientific arrangement for patch cords,with clear mark for fiber distribution
- Ensure fiber and cable bend radius bigger than 40mm everywhere
720 Core Frame Specification:
| Housing Material | cold rolled steel |
| Splice and Distribution Tray Capacity | 12 pieces of SC, FC or ST adaptors |
| (12 fibers); 12 pieces of duplex LC adaptors (24 fibers) | |
| Applicable Adaptor | SC, FC (duplex LC or ST is optional) |
| Installation Method | odf rack mount |
Technical Parameters:
| Fiber Bending Radius | >37.5mm (protective tubes are furnished for fibers passing through metallic holes.) |
| Cable Bending Radius | >15 times of cable diameter |
| Nominal Working Wavelength | 850nm, 1310nm, 1550nm |
| Insertion Loss | ≤0.2dB |
| Return Loss | ≥45dB (PC), ≥50dB (UPC), ≥60dB (APC) |
| Durability | >1,000 times |
| Insulation Resistance | ≥1,000MΩ/500V(DC) |
| Voltage Resistance | ≥3,000V(DC), 1 min no puncture, no arc-over |
| Vertical Pressure | >980N |
| Atmospheric Pressure | 70~106KPa |
| Relative Humidity | ≤95% (+40°C) |
| Operating Temperature | -40°C~+85°C |
| Storage Temperature | -40°C~+85°C |
Specification
Application
Order information
| Product Model | Descriptions | Inquiry |
|---|---|---|
| BD-ODF-720 | 19 inch Rack Mount ODF, 800*400*2000mm, with 60 piece of 12 fibers Splice and Distribution Integrated Tray (full configuration), with adaptors, pigtail | Request Price |
