Description
Description
The Model FOSC-D9 FOSC is mainly used for optical fiber connection and protection. This kind of box is suitable for the connection of overhead, pipe and buried straight and branch.The box body and base are sealed with hoops and rubber. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as
smooth appearance and reliable mechanical structure. The mechanical structure is reliable and has the performance of resistingwild environment and intensive climate changes and serious working environment.The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operatedindividually.The product can be opened again and reusedafter installation.
Features:
- High aging resistance
- High voltage resistance
- Reasonable structure and easy operation
- Excellent reusable mechanical sealing performance
- No special tools are required for installation and re-entry
- Its robust construction helps ensure high performance and reliability
- Sheath retention & central strength member termination system included
Application:
- Aerial
- Direct-buried
- Wall-mounting
- Duct-mounting
Specifications:
| Type | dome/vertical |
| Sealing Structure | Reusable mechanical sealing |
| Material | PP+GF |
| Color | black |

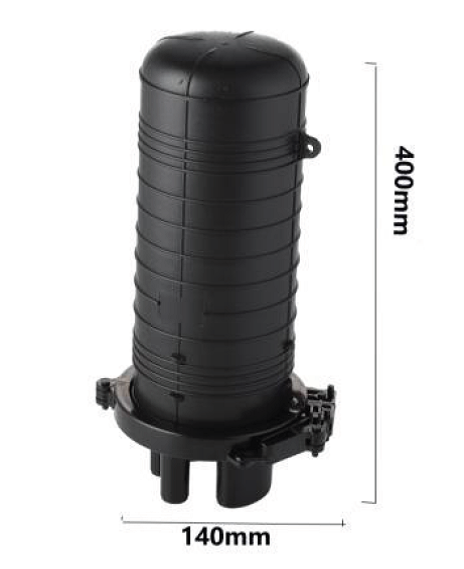

| Dimension | 400(L)*140(D)mm |
| Net Weight | 1.42kg |
| Splice Capacity per Tray | 24 fibers |
| Max. No. of Trays | 4 pieces (each tray for 24 fibers) |
| Max. Capacity (Single Core) | 48 fibers (2 trays×24 fibers) |
| No. of Cable Ports | 5 ports (1IN-4OUT) |
| Suitable Dia. Of Cable | 8~18mm |
| Hinged Trays | stackable; individual tray access |
| Watertight and Dustproof Grade | IP68 |
| Working Temperature | -40°C~65°C |
| Quantity per Carton | 6 pieces |
Accessories:
splice sleeve, cassettes, sealing tape, mounting sets and accessories
Packing Info:
Carton packing: 8 sets/carton
Carton size: 82*45*39cm
Weight: 18.67kg/carton
