What does RS232 mean? What is RS485? What is RS422? What is the difference between RS232 RS422 and RS485? RS232, RS422, and RS485 are interfaces for digital data transmission. The RS232 standard is a common computer port, whereas RS422 and RS485 are frequently used for connections between industrial devices. This article will introduce the following content:
What does RS232 mean,
What is RS485,
What is RS422,
What is the difference between RS232 RS422 and RS485,
Application of RS-232 RS-422 RS-485 Used in Converter and Multiplexer.
Part I. What is RS232 RS485 RS422?
What does RS232 mean?
RS232, also known as the RS232 standard interface, is a commonly used serial communication interface standard. It is widely used for communication between computers and peripheral devices such as modems, printers, etc. RS232 is an interface used for digital data transmission. It supports both full duplex and half-duplex transmission modes. This means that the RS232 interface supports both one-way and two-way data transmission simultaneously. They are commonly used for data transmission, control and monitoring, data acquisition, as well as communication equipment.
What is RS485?
RS485, also known as the RS485 standard interface, is a serial communication protocol that uses differential signal transmission. In industrial environments, RS-485 is very popular due to its long-distance communication capabilities, multipoint capacity, and noise resistance. It supports multipoint communication. RS485 is widely used in industrial automation, building automation, instrumentation, security systems, and other fields.
What is RS422?
RS422, also known as the RS422 standard interface. It is a balanced transmission communication protocol that defines the characteristics of the interface circuit. RS422 uses full-duplex differential transmission, with two signal lines for transmitting and two for receiving. The RS422 interface is widely used for data communication between various industrial devices, such as sensors, actuators, PLCs, etc., due to its efficient transmission and high stability.
Part II What is the difference between RS232 RS422 and RS485?
What is difference between RS232 and RS485?

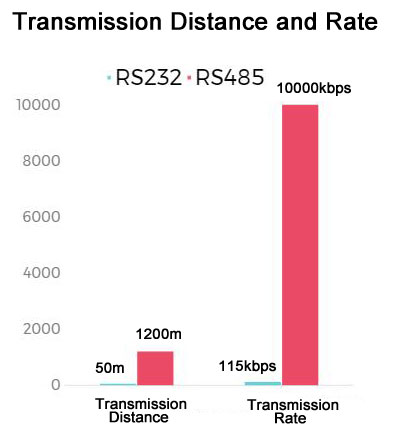

1.Transmission Distance and Rate
RS232 is typically used for short-distance communication, with a maximum range of several tens of meters. RS485 is suitable for long-distance communication, with a maximum range of up to 1,200 meters.
The highest data transmission rate for RS232 is usually 115.2 kbps, while RS485 can reach a maximum transmission rate of 10Mbps.
2.Communication Modes
RS232 uses full-duplex communication, whereas RS485 employs half-duplex or full-duplex communication modes.
3.Network Connection Methods (Network Topology)
RS232 is commonly used for point-to-point connections, that is, one-to-one communication links.
RS485 supports multipoint connections, where a single node can connect to multiple nodes.
What is the difference between RS422 and RS485?
1.Methods of Transmitting Data
The most significant difference between RS485 and RS422 lies in how they transmit data.
The RS422 uses four signal lines, with two dedicated to sending (Y, Z) and two for receiving (A, B), allowing it to send and receive data simultaneously.
The RS485 utilizes only two signal lines (A, B), achieving bidirectional communication of data through differential signaling. It cannot transmit and receive data at the same time.
What is the difference between RS232 and RS422?
1.Transmission Distance and Rate
The maximum standard transmission distance for RS232 is 50 meters, while the maximum for RS422 is 1,200 meters.
The highest data transmission rate for RS232 is usually 115.2 kbps, whereas RS422 can achieve a maximum transmission rate of 10Mbps.
2.Network Connection Methods
RS232 is typically used for point-to-point connections, that is, one-to-one communication links.
RS422 supports multipoint communication.
Part III. Application of RS232 RS422 RS485 in Converter and Multiplexer

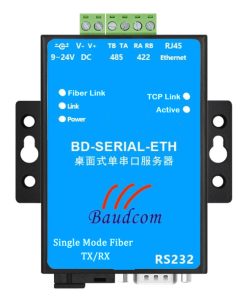

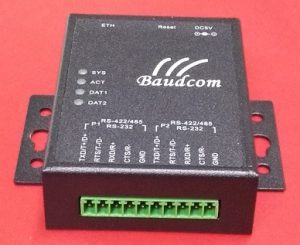

Application of RS232 RS422 RS485 in Converter
The RS232, RS485, and RS422 interfaces can be used to connect and manage converters. Through these interfaces, the converter can be linked with a computer or other devices using dedicated configuration lines, enabling remote configuration, monitoring, and management of the converter.
More types of Converters that Support RS232/RS422/RS485, Please Click here…
|
|
|
|
|
|
Application of RS232 RS422 RS485 in Multiplexer
In multiplexers, the RS232, RS485, and RS422 interfaces are commonly used to connect with computers or other devices for data transmission and exchange. Through these interface, devices such as computers can send data to the modem (e.g., dialing commands, etc.)
The multiplexer then converts this data into analog signals for transmission. At the same time, the multiplexer can also convert received analog signals into digital signals and transmit them to the computer or other devices via these interface.
More types of Multiplexers that Support RS232/RS422/RS485 Please Click here…
|
|
|
|
Conclusion
RS232, RS422, and RS485 are all standards used for digital data transmission. Most Converters, Modems from Baudcom Support RS232, RS422, and RS485 to ensure reliable communication with other devices.
