GPON OLT Stick SFP Module for Fiber Network Upgrade
Short Description:
GPON OLT Stick enables operators to transform compatible access equipment into GPON OLT devices, compact design save space, plug-and-play, easy for maintenanceDescription
Specification
Application
Order
Downloads/FAQ
Product Tags
Reviews
Description
Upgrade your existing network equipment to a GPON Optical Line Terminal (OLT) quickly and cost-effectively with this GPON OLT Stick SFP Module. Designed as a compact plug-in solution, it enables service providers and network operators to transform compatible access equipment into GPON OLT devices without replacing existing hardware, which reduce equipment space occupation and maintenance costs.
Featuring GPON MAC functionality, Class B+ optical performance, DDMI monitoring, and support for multiple management protocols including HTTP, Telnet, SSH, and TR069, the module provides reliable performance and easy remote management. With low power consumption below 2.5W and support for up to 8km transmission distance, it is an ideal solution for upgrading legacy access networks to GPON technology.
GPON OLT Stick SFP Module Features
- Single – fiber bidirectional high – speed transmission
- Downstream: 2.488Gbps
- Upstream: 1.244Gbps
- With GPON MAC function
- SFP+ package
- SC interface
- Hot-swappable function
- Support 8km single – fiber optical transmission distance
- Low power consumption: <2.5W
- Operating temperature: 0°C to 70°C
- The GPON mode can support up to 1:64 ONU splitting ratio
Specification
| Item | specification |
| Interface | 1*GPON |
| PON | Physical interface: PON interface |
| Type: Class B+ | |
| Maximum split ratio: 1:32 | |
| Complies with standard GPON protocol, compatible with mainstream HUG ONU terminals on the market | |
| Rate | Downstream: 2.488Gbps application, with GPON MAC function |
| Upstream: 1.244Gbps application, with GPON MAC function | |

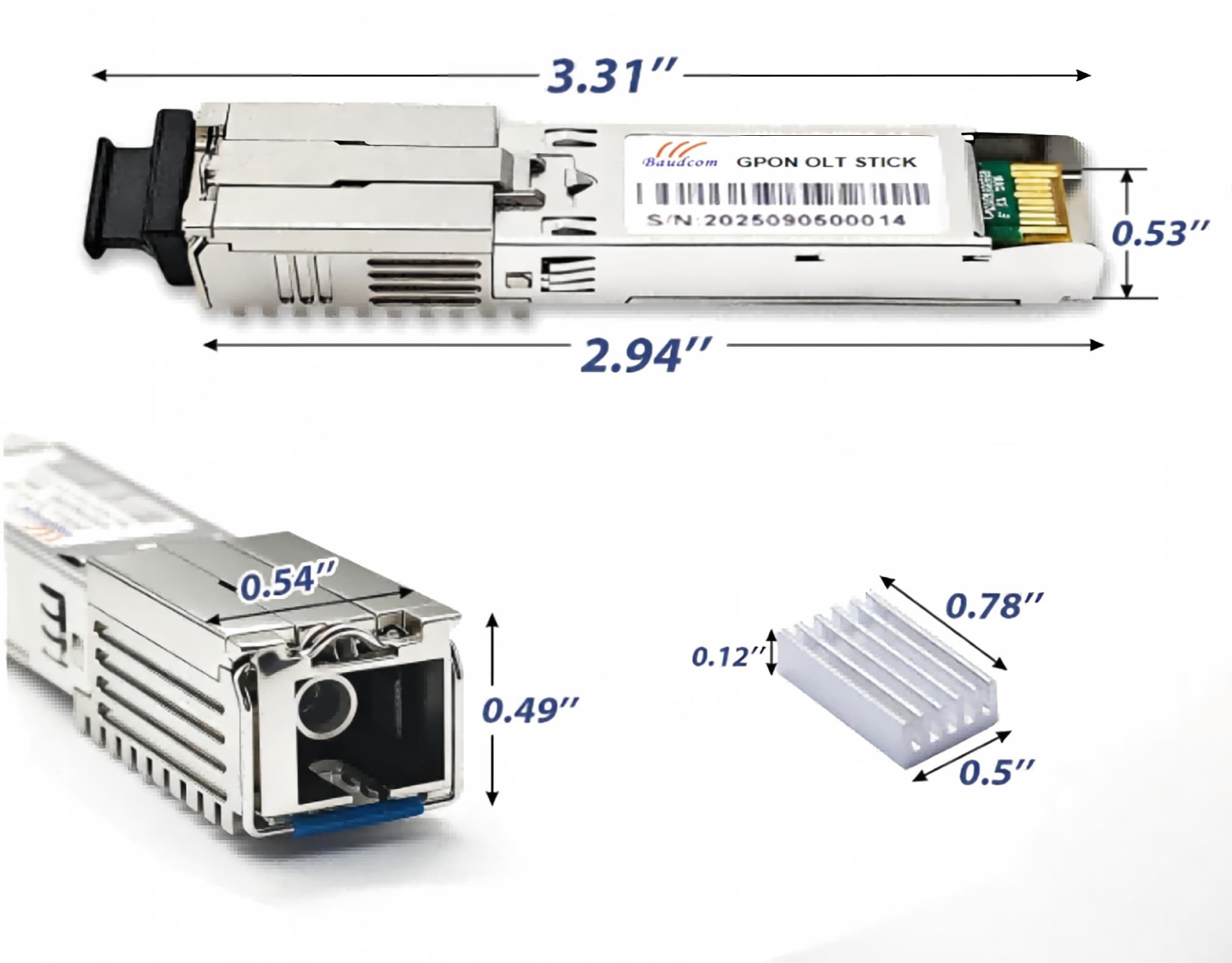

| Dimensions | 75mm x 22mm x 12mm |
| Weight | ＜30g |
| Environment | Operating temperature: 0°C~70°C (Commercial grade)
Storage humidity: 5%~95% (no condensation) |
| Power Supply | 3.3V |
| Power Consumption | ＜2.5W |
| Optical Power | <2dBm |
| DDMI | Supported |
| Management Function | Http/telent/SSH/TR069 |
| SFP MSA Standard | SFP+ package, compatible with 1.25G/2.5G/10G optical interfaces |

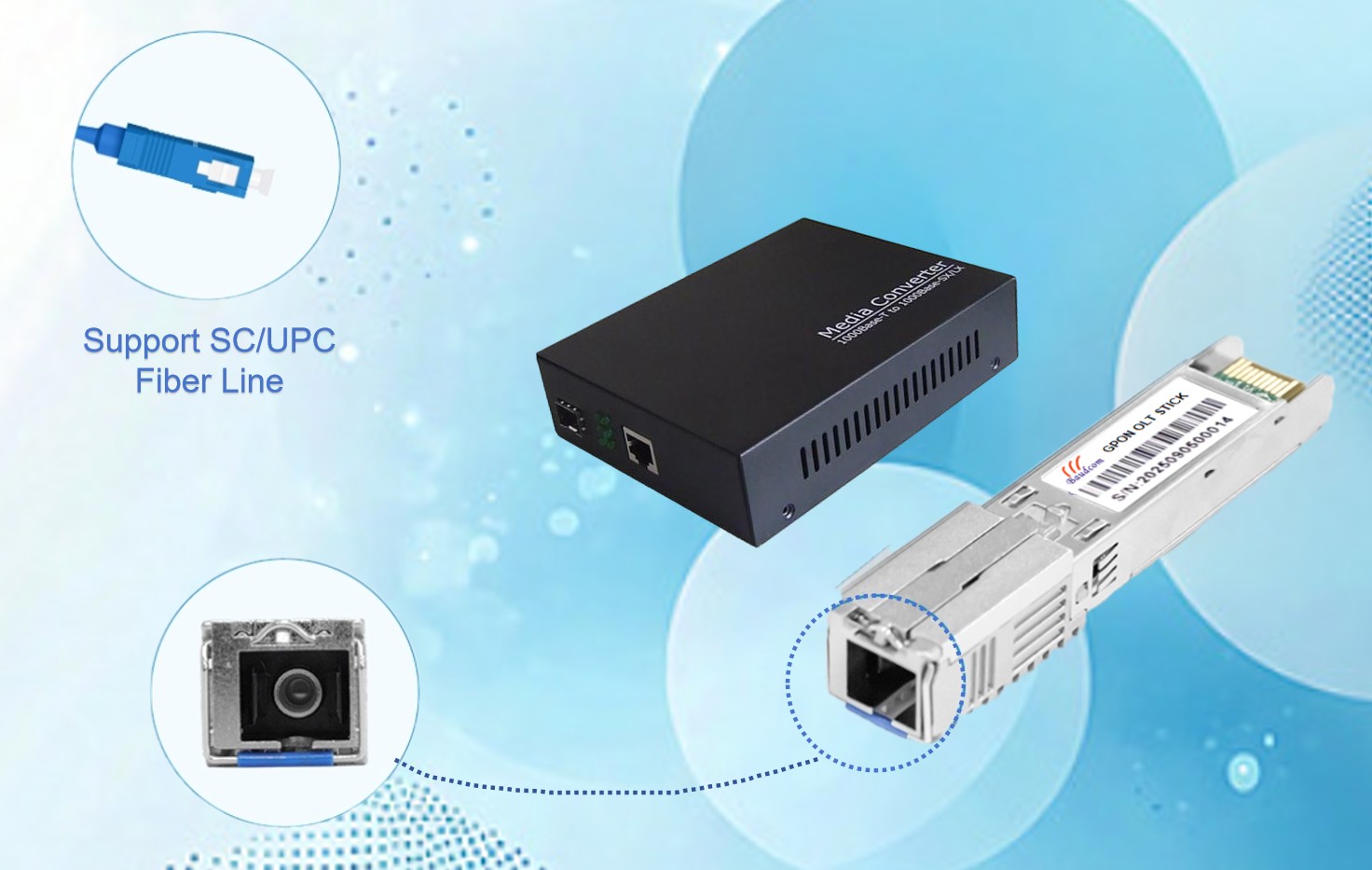

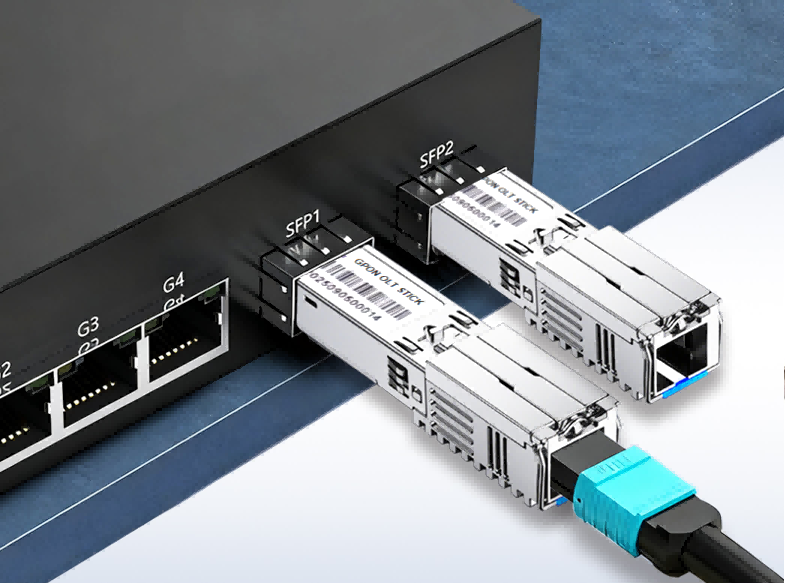

Application
Order
| Product Model | Descriptions | Inquiry |
|---|---|---|
| BD-OLT-STICK-G-16 | GPON, 16 ONU access | Request Price |
| BD-OLT-STICK-G-32 | GPON OLT STICK, 32 ONU access | Request Price |
