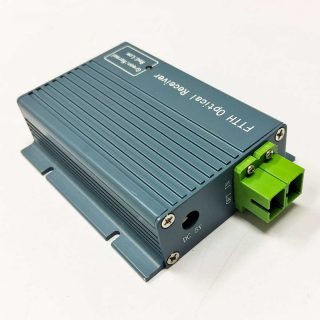

CATV RF Optical Receiver with PON WDM – 2RF output

CATV RF Optical Receiver with PON WDM – 2RF output

Short Description:

CATV RF optical  characteristics  High-quality aluminum profile shell with good heat dissipation.  RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -15dBm reception and the analog signal satisfies -10dBm reception. With light input AGC function (AGC range can be customized). Low-power design, high-efficiency switching power supp…
  • Payment Terms: Paypal,western union,L/C,D/A,D/P,T/T

  • Description

    Specification

    Application

    Order information

    Q&A

    Product Tags

    Reviews

    Description

    CATV RF optical  characteristics

    •  High-quality aluminum profile shell with good heat dissipation.
    •  RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -15dBm reception and the analog signal satisfies -10dBm reception.
    • With light input AGC function (AGC range can be customized).
    • Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power consumption is less than 2W, with a light detection circuit.
    • Can be built-in WDM, single-fiber home (1490/1310/1550nm) triple-network convergence applications.
    • Built-in optical isolator, input to achieve 1490/1310nm isolation
    • Multi-stage lightning protection devices (TVS TVS diodes) and lightning protection systems ensure the safe operation of the equipment.
    • SC/APC or FC/APC or custom optical connectors, male or female RF interfaces.
    • Output power supply can be achieved.
    • Single or dual output can be achieved.

    Technical parameters

    Technical parameters CATV RF Optical Receiver-WDM – 2RF output
    Received wavelength 1100~1600nm&1550nm
    Input optical power 0dBm~-10dBm(Analog)&0dBm~-15dBm(digital)
    Optical reflection loss >45 dB
    Optical connector form FC/APC&SC/APC&FC/PC&SC/PC
    Frequency Range 47~1006MHz
    In-band flatness ±1dB@47~1006MHz
    RF output reflection ≥16dB@ 47~550MH ; ≥14dB@1006MHz
    Output level ≥80dBuV(1 port) /≥76dBuV(2 port)
    Output port number 1 or 2
    RF output impedance 75Ω
    AGC range -3dBm~-12dBm
    Carrier to Noise Ratio (Note1) ≥51dB
    CTB (Note 1) ≥65dB
    CSO(Note 1) ≥62dB
    Host voltage DC5V
    Adapter voltage AC110V or AC220V or customized
    Operating temperature -20℃ ~+55℃
    Power consumption <2W
    Product net size 129×79×26mm
    10 pack sizes 313×245×83mm
    FCL packaging size (100) 500×440×345mm
    Product net weight 0.17kg

     Note 1: Test conditions: 59 PAL-D analog television channel signals are deployed in the 550 MHz frequency range,and digital modulation signals are transmitted in the frequency range of 550 MHz to 862 MHz under the specified link loss conditions

      The 8MHz bandwidth is 10dB lower than the carrier level of the analog signal, and the optical receiver input optical power is 0dBm, measuring C/N, CTB, and CSO.





    Specification
    Application

    The BD-OR-2RF-WDM RF optical receiver is a home optical receiver with optical fiber access as its ultimate goal. It is suitable for FTTH (fibre to the home) network fiber subscriber access terminals, enabling analog or digital signals to home. The machine uses low-power photodetectors, GaAs and optical AGC technology to meet the fiber-to-the-home CATV reception needs. This device can be with WDM and achieve triple play application.
