    Overview:

    As a cost effective solution for the traditional telecom services migrate to the IP packet networking technology, BD-8E1-IP adopts the innovative TDM over IP technology, it transports the legacy E1 data through the existing Ethernet or IP network.

    BD-8E1-IP is the new generation of the TDM over IP equipment with IP circuit emulation that supports transportation of eight E1 and two local Ethernet ports over Ethernet or IP network. The uplink ports and user data ports are IEEE 802.3 compliant, 10/100BaseT auto-sensed Ethernet port.

    The state-of-the-art design provides the highest availability with the accurate timing signal and data bit stream reconstruction. Predefined system parameter profiles that according to different application requirement; ultimately simplify the installation process and saving the maintenance cost.

    Telecom and Enterprise users can save a lot of access and equipment costs and generates new revenue by offering different types of service over existing Ethernet networks. It is also suitable for connecting to the wireless equipment to achieve fast deployment of E1 services. One particular application is to build E1 links with low cost Wireless LAN bridges, replacing much more costly microwave radios. Operators can use BD-8E1-IP to provide legacy TDM services over wired or wireless packet network.

    Features

    1. User-friendly Web server supported for easy setup and maintenance
    2. SupportIETF RFC4553 SAToP protocol, Ethernet encapsulation support IP/UDP
    3. Point to point and point to multipoint application
    4. Eight E1 Ports supported
    5. Provide 4 FE electrical ports and 1 FE optical port, 2 uplink ports, 2 local data ports or monitoring ports, optical port can be used for uplink or local data.
    6. Stable E1 clock recovery, low jitter and wander
    7. Low processing delay for E1 channels, high bandwidth usage efficiency
    8. Resist to packet loss, with PCM frame synchronization protection
    9. User definable encapsulation packet size for different application
    10. Support VLAN settings for E1 service and in band VLAN management.
    11. E1 clock supports 3 mode: local clock, adaptive and loopback
    12. Enough jitter buffer to resist packet delay variation (PDV)
    13. Local Ethernet port throughput limiting, assuring E1 QoS
    14. Local and remote E1 LOS and AIS and packet loss indication for trouble-shooting and maintenance
    15. Ethernet built-in layer 2 switch, support VLAN(port based, 802.1Q based and QinQ based), QoS(port based、8021.1P based、MAC based and TOS based).
    16. 16.Ethernet supportIEEE 802.3x, RSTP (1w), LLDP, Ethernet ring protection, OAM and MAC address automatic learning
    17. Ethernet packet size up to 9720byte
    18. Support POE (maximum power: 60W) (optional);

    Technical Specifications

    Item Description
    Model BD-8E1-IP 2 Uplink (1+1), 8E1s, 2 User Data Ports
    Interfaces Uplink 2 Uplink Ports

    Comply with IEEE 802.3

    Speed and duplex auto-negotiation or forced

    E1 Port 8 E1 Ports Supported

    Comply with G.703

    Impedance: E1-120Ω or 75Ω

    User Data Port 2 User Data Ports Supported

    Comply with IEEE 802.3

    Speed and duplex auto-negotiation or forced

    Web Manager Supported

    Power Supply Pluggable dual power supply
    2DC or 2AC or DC+AC
    -48V DC or 100~240V AC
    Consumption ≤10W
    Working Environment Temperature 0~ 50°C
    Relative Humidity ≤90% (non-condensing)
    Dimension W x H x D (mm): 440 x 44 x 231

    Question: Can Baudcom provide 1*RJ45 to 2*BNC male cable 50cm?
    Answer: Yes, Baudcom can provide the cable, but need to pay attention to line sequence.

    Question: Can the 8E1 TDMoIP converter support optical uplink?

    Answer: Yes, the E1 tdm over IP converter can support both 10/100M-TX electrical and 10/100M-FX optical uplinks.

    Question: Does the E1 ethernet converter support VLAN?

    Answer: Yes, the E1 tdm over ethernet converter can support VLAN function. The user can configure the VLAN and Q-in-Q VLAN via web management.

    Specification
    Application

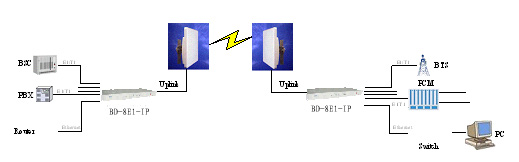

    Point to Point Application

    Point to Multipoint Application

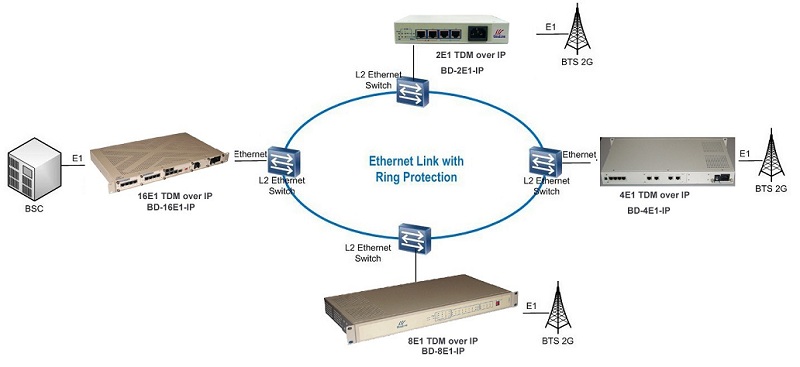

    E1/4E1/8E1 TDM over IP work with 16E1 TDM over IP .
    Ethernet over 8E1 tdm over ip application diagram
    Order information
    Product Model Descriptions Inquiry
    BD-8E1-IP/AC 8E1 over ethernet multiplexer(TDM over IP),8E1 ports (75ohm/120ohm option),2*10/100Base-T data interfaces for downlink,2*10/100Base-T interfaces for uplink (1+1),power AC220V Request Price
    BD-8E1-IP/DC 8E1 over ethernet multiplexer(TDM over IP),8E1 ports (75ohm/120ohm option),2*10/100Base-T data interfaces for downlink,2*10/100Base-T interfaces for uplink (1+1),power DC 48V. Request Price
    BD-8E1-IP/AC+DC 8E1 to Ethernet converter/multiplexer (TDM over IP),8E1 ports (75ohm/120ohm option),2*10/100Base-T data interfaces for downlink,2*10/100Base-T interfaces for uplink (1+1),AC220V+DC48V Request Price
