E1 over Fast Ethernet TDMoIP Converter

E1 over Fast Ethernet TDMoIP Converter

Short Description:

BD-FE1-IP adopts the innovative TDM over IP (TDMoIP) technology, it transports the legacy E1 data through the existing Ethernet or IP network.
  • Payment Terms: Paypal,western union,L/C,D/A,D/P,T/T

  • Description

    Specification

    Application

    Order information

    Q&A

    Product Tags

    Reviews

    Description

    Overview

    TDMoIP converter supports one E1 interface and four 100M Ethernet interfaces for IP internet transmission. High transmission efficiency, minimal transmission delay, and high precision clock recovery are all features of the E1 tdm over IP converter. It can also be used to connect to wireless devices in order to quickly install E1 services. One application is to replace far more expensive microwave radios with low-cost Wireless LAN bridges to establish E1 lines.

    BD-FE1-IP uses the unique TDM over IP (TDMoIP) technology to transmit old E1 data over an existing Ethernet or IP network, making it a cost-effective option for traditional telecom services migrating to IP packet networking technology. It is a new generation of TDMoIP Converter that includes IP circuit emulation and can transport four E1 over an Ethernet or IP network. IEEE 802.3 compliant uplink and user data ports, as well as a 10/100M BaseT auto-sensed Ethernet port.

    With accurate timing signal and data bit stream reconstruction, the state-of-the-art design ensures the maximum availability. Predefined system parameter profiles that may be customized to meet the needs of various applications, simplifying the installation procedure and lowering maintenance costs.

    Features

    • One E1 interface, E1 interface impedance support 75Ω and 120Ω
    • Support L2TPv3/IPv4, UDP/IPv4, Metro Ethernet (MEF-8) and MPLS (MFA-8) and other agreements
    • E1 interface complies with G.703, G.704 standard
    • Each E1 support jitter buffer depth of 1-255msec
    • Configure via CLI/Web
    • Support VLAN tagging and QinQ function
    • Support Qos setting
    • Provide statistics for Ethernet+E1
    • Support software and firmware upgrade

    A Video of E1 over Fast Ethernet:

    BAUDCOM FE1 TDM over IP successfully tested by E1 tester:

    Specification
    Item Description
    Model BD-FE1-IP 1 E1, 3FE electrical ports and 1 FE optical port
    Interfaces Uplink 3 FE electrical ports and 1 FE optical port
    Comply with IEEE 802.3, 802.1Q, 802.1P, 802.3x
    Speed and duplex auto-negotiation or manual
    E1 Port 1 E1 Supported

    Comply with G.703 G.704

    Impedance: E1-120Ω or 75Ω

    Power Supply -48V DC or 220V (110V) AC power supply
    Consumption ≤10W
    Working Environment Temperature 0~ 50°C
    Relative Humidity ≤90% (non-condensing)
    Application

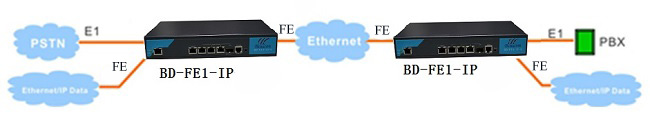

    E1 over ethernet Application 1

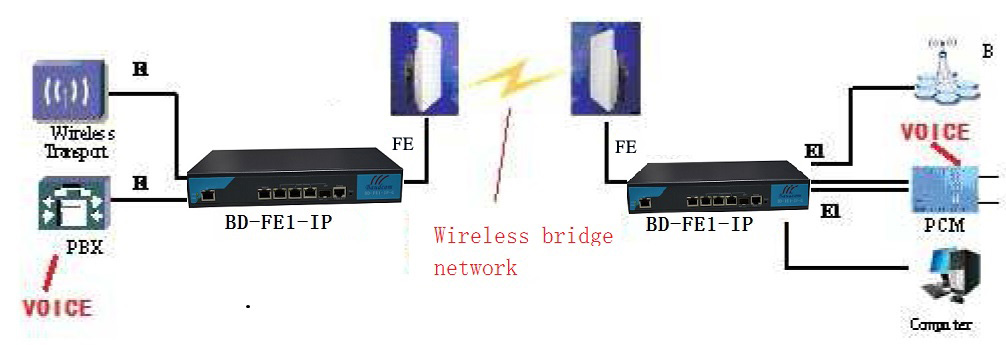

    E1 over ethernet Application 2

    Order information
    Product Model Descriptions Inquiry
    BD-FE1-IP/AC E1 over Fast Ethernet converter, framed E1, 3FE electrical ports and 1 FE optical port (SFP slot), power AC 220V Request Price
    BD-FE1-IP/DC E1 over Fast Ethernet converter, framed E1, 3FE electrical ports and 1 FE optical port (SFP slot), power DC 48V Request Price
    Q&A

    BD-FE1-IP 1E1 2E1 4E1 over FE Multiplexer-user manual

    Question1: Can BD-FE1-IP support Etherent diagnosis, and package loss indicator function for E1 transmission line?
    Answer: Yes, it can. No matter whether it is in transmission or what the transmission rate is.

    Question2: Can this conveter be powered by DC 24V power supply?
    Answer: Yes, it can be powered by DC 24V.
